4:1 Combiner

The system incorporates four lanes of pneumatically actuated clamping devices and blade stops that are used to control the traffic of four rows or product and merge them seamlessly down to one lane for delivery to a palletizing system.

title
title

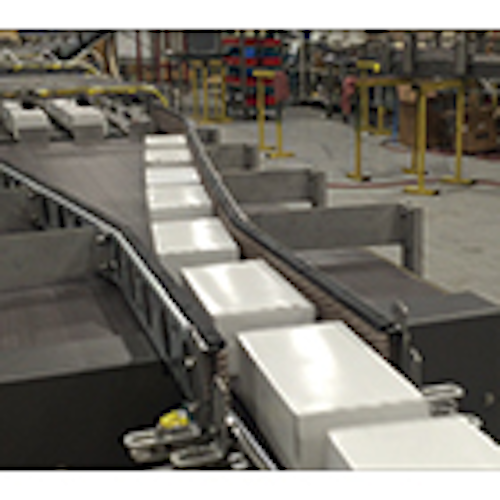

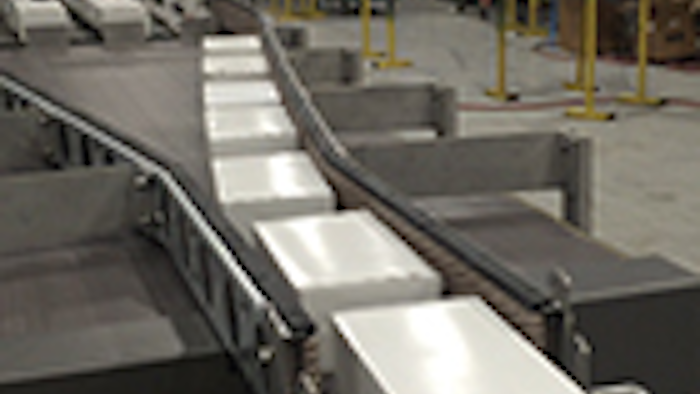

Multi-Conveyor recently provided a multiple lane table-top conveyor system incorporating a 4 to 1 merge for cartons. Although the packaged snack food manufacturer originally requested three 2:! combiners, Multi-Conveyor offered an economical 4 to 1 solution which saved the client both floor space and money. The system incorporates four lanes of pneumatically actuated clamping devices and blade stops that are used to control the traffic of four rows or product and merge them seamlessly down to one lane for delivery to a palletizing system.The clamps and blade stops operate automatically  by sensing product back-up in each lane while in production mode, or, they can be closed prior to product arrival when a predetermined stoppage in the line is necessary. Electronic sensors are used to determine back-up conditions, detect product presence at the devices, notify when devices are clear for actuation. The sensor feedback dictates sequenced product release and line conditions.The entire solution integrated table-top and modular plastic belt conveyors, five single lane-incline and two double-lane decline spiral conveyors and high friction decline belt conveyors. This arrangement gave the customer overhead conveyance to allow access to floor level machinery. The solution also included a 4-lane vertical divert to deliver cartons to either of two case packers or to the 4:1 Combiner.
