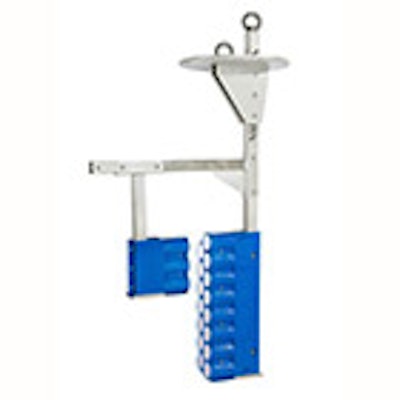

FloLevel Technologies launches a new self-cleaning acoustic level and flow analyzer for Flotation Cells. This new technology measures Pulp/Slurry interface and Froth height, as well as Froth Density and Froth Flow Rate, to provide process feedback to the control
system. The analyzer is suitable for many types of mineral recovery, including Copper, Molybdenum, Gold, Silver, Lead, Nickel, Iron Ore, Coal, Potash, Oil Sands, Zinc and Gypsum. The system is easy to install and calibrate. It comes with adjustable 316SS bracket, with flange mounting options and a colour display controller mounted in a stainless steel enclosure. They can measure all types of Flotation Cell, with depths greater than 6000 mm (236") and the resolution accuracy options available are 2mm (0,08"), 15mm (0.6"), 25mm (1.00"). Various output capability options are available, like 4 x 4-20Ma, Modbus, ProfiBus, Foundation FieldBus, DeviceNet, and Ethernet.
FloLevel Technologies Pty Ltd
