Doing What Flat Conveyors Can’t

QC Industries recently launched its Automation Series AS40Z angled-frame conveyors to enable elevation changes that aren’t possible with a flat conveyor.

title
title

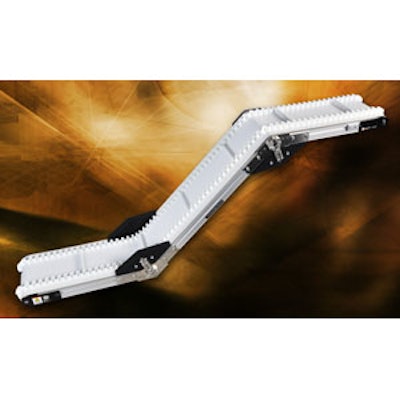

QC AS40Z conveyorQC Industries recently launched its Automation Series AS40Z angled-frame conveyors to enable elevation changes that aren’t possible with a flat conveyor. According to the company, these conveyors are further characterized by:

  • The power to carry loads up to 120 pounds and move at speeds up to 200 FPM.
  • Resistance to twisting, which is a leading cause of belt tracking issues.
  • Tension release tails that flip up at the push of a button, then click back into place with all tracking adjustments retained, to allow easy under-belt cleaning.
  • Reduced torque requirements, which allows the use of smaller motors than other angled-frame conveyors, letting them fit into spaces other conveyors cannot.
  • Widths from 8 to 24 inches, lengths up to 20 feet and a 1.95-inch (H) aluminum frame.
  • 3 different configurations for any elevating or lowering application — the L transitions from horizontal to inclined, the R is inclined to horizontal, while the Z is horizontal to inclined to horizontal.
  • Availability of the most popular angles — 30°, 45° and 60° — whereas others are available as special orders.
  • A wide variety of belt options, including those with cleats and corrugated sidewalls that help keep product contained on the belt.
  • Optional V-guide belts to assist in tracking, especially in hard-to-reach applications.
