Encoders for Small Applications

AutomationDirect has added Koyo inch-size light and medium-duty encoders to its line of positioning and motion control products.

title
title

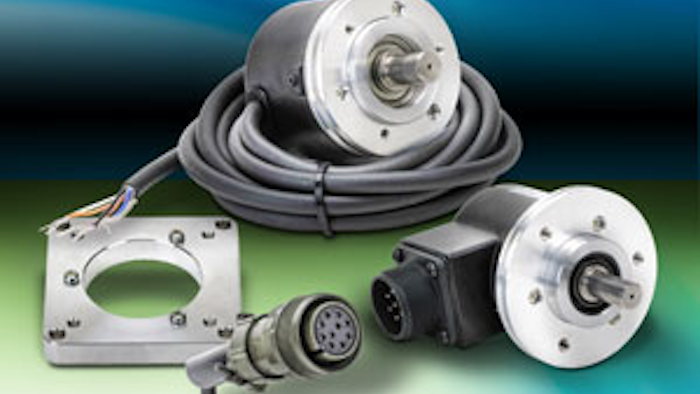

Koyo inch-size light and medium-duty encodersAutomationDirect has added Koyo inch-size light and medium-duty encoders to its line of positioning and motion control products. The company says that these stainless steel solid-shaft encoders provide a cost-effective solution for small applications and are additionally characterized by:

TRDA-2E Series Light-Duty Encoders

  • A 0.25-inch diameter stainless steel solid shaft.
  • Resolutions from 100 to 2,500 pulses per revolution.
  • Fitted with a two-meter cable with tinned ends.
  • Available with 12-24 VDC open-collector or 5VDC line-driver outputs; the series provides up to 200 kHz response frequency.

TRDA-20 Series Medium-Duty Encoders

  • A 0.375-inch diameter stainless steel solid shaft.
  • Resolutions from 100 to 2,500 pulses per revolution.
  • Fitted with a two-meter cable with tinned ends and are available with 5-30 VDC totem-pole (push/pull) or 5VDC line-driver outputs; the series provides up to 200 kHz response frequency.

TRDA-25 Series Medium-Duty Encoders

  • A 0.375-inch diameter stainless steel solid shaft.
  • Resolutions from 100 to 2,500 pulses per revolution.
  • Fitted with a military-style connector, these encoders also have a removable 2.5-inch round flange. Available with 5-30 VDC totem-pole (push/pull) or 5 VDC line-driver outputs, the series provides up to 200 kHz response frequency.

www.automationdirect.com/encoders

www.automationdirect.com
