We have come a long way since 1970 with the reduction in gaseous and particulate emissions to the environment — a decrease of more than 100-fold since that time. Advances in equipment and technology are responsible. Leading the way is the evolution of the liquid-to-gas scrubber. The classic venturi scrubber, with the associated entrainment tower, was the recognized workhorse of the industry for cleaning of ash-laden gases. These original scrubbers were employed primarily to make a more convenient workplace.
But as the adverse health effects of airborne pollutants started to be recognized, stringent regulations began to be enforced. With stronger regulations came the need for increasingly efficient and innovative equipment and technology to provide discrete control of particulate matter, acid gases and heavy metals.
Now, Section 129 of the Clean Air Act (CAA), regarding regulation of emissions from both hazardous and non-hazardous solid waste incinerators, is again impacting industrial processors, manufacturers and municipal wastewater treatment plants with stricter regulations.
Section 129 requires the U.S. Environmental Protection Agency (EPA) to enforce emission limits for nine air pollutants from incinerators, including commercial/industrial solid waste incinerators. These pollutants are particulate matter (PM), sulfur dioxide (SO2), hydrogen chloride (HCl), nitrogen oxides (NOx), carbon monoxide (CO), lead (Pb), cadmium (Cd), mercury (Hg), and dioxins/furans. All standards established pursuant to CAA Section 129 (a)(2), must reflect maximum achievable control technology (MACT).
Despite the escalated necessity to become compliant with Section 129 of the CAA, many plants still have not put in place adequate technology to upgrade their existing air pollution control (APC) systems.
Ring Jet multistage wet scrubber process.Limitations of Conventional APC Wet Scrubber Technology
A key pollutant here is particulates. Whether a facility is generating flue gas from incineration of wastewater treatment sludge, medical hazardous waste, pulp and paper, or foundry processes, if a scrubbing technology is not aggressively removing particulates, it will not be compliant with Section 129 standards.
A wet scrubber system is the process of choice to clean air, fuel gas or other gases of various pollutants, and particularly dust particles. Wet scrubbing makes contact with target compounds
or particulate matter with a scrubbing solution, pulls the contaminant out of the flue gas, and carries the pollutants away in a liquid stream. The solutions may simply be water (for dust) or solutions of reagents that specifically target certain compounds.
Conventional wet scrubbing systems utilize a quench which delivers a cooling effect, and venturi technology which controls the fluid flow and velocity through a constricted section of the scrubber. A singular, large venturi device is utilized to create a spray of solution or water, which then traps the pollutants. In conventional wet scrubbers with venturi systems, that spray is more of a rain, with the droplets being of a larger size. The volume of particulate removal, however, is directly related to the surface area of the droplets, as well as temperature and viscosity. For any given volume flow of water or solution through the system, the bigger the droplet size, the less surface area is extant to contact and remove particulates. Hence, conventional wet scrubbing systems have been limited in their function to clean particulates from flue gas streams.
Ring Jet Multistage Wet Scrubber Process: Streamlining Air Pollution Control Systems
The ability of wet scrubbing systems to attract and remove particulates, and other pollutants, has been greatly expanded through the application of Ring Jet™ venturi scrubber technology, developed by Hitachi Zosen Inova (HZI). The Ring Jet process represents 55 years of accumulated experience in the design, engineering and operation of combustion flue gas cleaning equipment for the municipal and industrial sectors.
It consists of a variable throat bomb bay door quench, packed cooling and conditioning tower, an optional pH-controlled caustic absorption section, a proprietary Ring Jet venturi, followed by a sorbent polymer composite (SPC) mercury removal system.
Each of the three stages of the process is optimized for a particular pollutant, such as acid gases, particulate, heavy metals, etc. Heavy metals and aerosols, for example, are removed without any need to be concerned about load fluctuations.
Quench Stage — The quench section of the scrubber has two functions. The first is to cool the incoming gases to their saturation temperature. The second is to capture the majority of the incoming particulate coming from the combustion system for collection and disposal.
Particulate removal efficiency, and to some degree gas cooling, is controlled by the degree of turbulence and intimate gas-to-liquid contact that occurs in the venturi section of the quench. That section is fitted with adjustable bomb bay doors. By opening or closing these doors the throat area will change, thus decreasing or increasing, respectively, the turbulence and droplet
surface area in the throat. It is this turbulence that creates the gas-to-liquid contact required for particulate removal. The venturi pressure drop measures the degree of turbulence. The pressure drop is controlled by modulating the bomb bay doors automatically to maintain the pressure drop at the set point. These doors are a positive and reliable method for control of turbulence, they replace the archaic cone-and-plug mechanism.
Packed Cooling and Conditioning Tower Stage — The purpose of the packed tower (cooling tower) is to subcool and condition the gases prior to SO2 absorption and fine particulate collection by the Ring Jets. The subcooling essentially increases the water viscosity thereby increasing droplet surface area. The flue gas flows vertically upward through the packed bed stage. Plant effluent water is sent into the top of the packed bed section via the packed tower flow control valve. The packed bed consists of several cubic feet of packing structures, which fill the entire cross section of the vessel. The packing creates channels, which provide contact between the flue gas and flush water, and also allow the flush water to absorb the SO2. Drainage from this stage flows into the plant’s return water system.

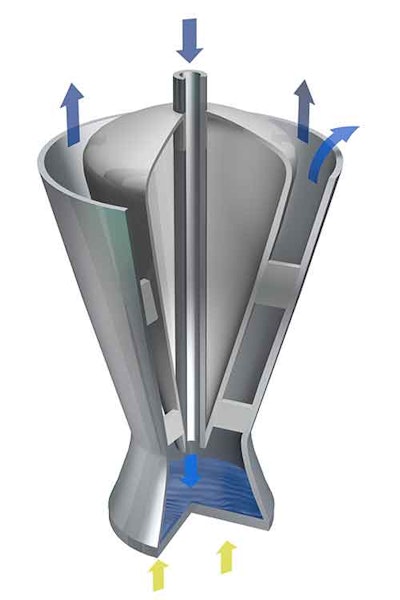

Cut-a-way of Ring Jet venturi technology. Flue gas with fine dust particles and aerosols enters the Ring Jet (yellow arrows). A stream of water (center blue arrows), flowing counter-flow to the gas stream from a port cast in the center of the Ring Jet inner cone, collides with an impingement plate causing the water (water mist with submicron dust particles and aerosols) to flow radially outward to the outer cone of the Ring Jet (angled blue arrow at top). Clean gas exits the Ring Jet separately (vertical blue arrows at top).Caustic Absorption Stage — From the packed tower, the saturated gases go to the SO2 gas absorption section. The remaining SO2 is removed in the absorption section. Plant effluent water is mixed with NaOH, and pumped to the top of the absorption section. In order to remove the SO2 from the flue gas, the pH of this effluent/caustic mixture is maintained at a concentration level between 6.5 and 7.0.
The existing pH and control and caustic blowdown will be modified to assure reliable control of SO2 capture. Two existing wet scrubber caustic pumps will be used to recirculate caustic through the gas absorption section.
Ring Jet Stage — After leaving the SO2 absorption section of the wet scrubber, the flue gas flows upward to the Ring Jet stage. Flue gas leaving the second stage passes through a separation floor before entering the Ring Jets. This third and final stage of gas scrubbing is comprised of a multiple of venturi-type Ring Jets for the removal of submicron particulates and aerosols from the flue gases.
Instead of a singular, large venturi-effect sprayer, Ring Jet venturi technology employs anywhere between 5 and 20 smaller venturi jets, positioned in parallel. These Ring Jets create a much smaller netting of droplets, which significantly increase the overall droplet surface area — given the same flow rate and volume of water or solution as with conventional wet scrubbers — thus attracting more particulates and contaminants.
The entering gas stream is divided into a number of smaller streams. These are forced through the individual Ring Jets. The particulate in the gas stream is forced to come into intimate contact with the scrubbing fluid, resulting in capture of the particulate by the fluid. The film of scrubbing fluid covers the mouth of the Ring Jet, thereby completely eliminating short cutting or bypassing.
The scrubbing fluid film is created by a stream of water, flowing counter-flow to the gas stream from a port cast in the center of the Ring Jet inner cone, and colliding with an impingement plate causing the water to flow radially outward to the outer cone of the Ring Jet. The liquid flow rate to the Ring Jets stage will be controlled in response to the gas side pressure drop. This feature allows for a constant operating pressure differential across the stage and, therefore, constant removal efficiencies at different flue gas flow rates.
The exit duct from the wet scrubber includes a demister. The demister captures any droplets of spray from the Ring Jets which may be remaining in the exiting flue gas.
Scrubbing tower with Ring Jet technology.Collection Of Spent Waste Liquids
In between each of the different stages, and at the exit of the scrubber, there are combinations of separation floors and/or demisters. The separation floors are used to collect the spent waste liquids in each stage so that they can be recycled back into the system after treatment. The demisters are used to prevent the carry-over of moisture entrained in the flue gas.
In situations where no wastewater is acceptable, the Ring Jet process provides a closed cycle, where the scrubber blowdown can be pumped into the spray dryer, and sprayed into the hot flue gases.
Mercury Removal System
The mercury control system (MCS) consists of stacks of static absorption modules located after a particulate collector in an industrial flue gas application. The modules are arranged in layers to cover the cross-sectional area of the gas flow. This mercury removal technology is based on a sorbent polymer composite material, containing sorbents and catalysts in a highly hydrophobic porous structure. The SPC is formed into flat and pleated sheets, and placed into a Hastelloy
C-276 frame to form each module. Gas flows through the channels formed by the pleated and flat sheets allowing for minimal pressure drop. Continuous gas temperatures should be below 180 F for optimum mercury removal performance.
Gas phase mercury is chemically bounded within the SPC material. In addition, MCS converts SO2 in the gas into aqueous sulfuric acid which falls into the scrubber absorber vessel below. The sulfuric acid, formed as a product of SO2 removal, helps to wash the SPC surface. The acid washing action, along with the smooth, low-friction texture of the polymer-based SPC, makes the module resistant to fouling and deposition by process dust. In addition, a water wash system is typically installed below and above the modules for intermittent operation to provide further protection from fouling.
Process Efficiencies
Although scrubbing technology for particulates removal has been well established for more than 50 years, Ring Jet scrubbers have definitely taken this technology to a new level. This is demonstrated by higher particulates removal rates — up to 99.99 percent — eliminating the need of a wet electrostatic precipitator (WESP), and coupled with other technologies to reduce footprint and utilize the plant water instead of needing a water pumping system. The process has no moving parts. It is simply a step-by-step process which eliminates different constituents in different stages. These advantages not only allow the plant to operate a robust and reliable system, it also reduces operating and maintenance costs substantially.
Joe Szczepkowski is the Director Engineering Hitachi Zosen Inova USA LLC.
