Elevate Your Inspections
Flaw Detector
EPOCH 6LT
EPOCH® 6LT Portable Flaw Detector
The EPOCH® 6LT flaw detector combines ruggedness and ease of use in an instrument designed to be operated using only
one hand, enabling fast, efficient rope access inspections and maximum uptime.
Designed for Rope Access Technicians

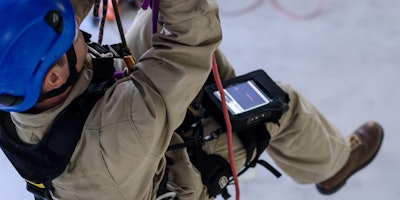

• Free Up Your Hands: Attach the instrument to your leg
or harness and keep your hands free to scan for flaws and
maintain balance
• Comfortable: Weighs just 1.95 pounds (890 g) with a
grip-oriented weight distribution for one-handed operation
with minimal wrist fatigue
• Easy to Use: Rotary knob and simple button design make
it easy for users to navigate the menu and adjust parameters
using just their thumb, even while wearing gloves
• Clear, Bright Screen: Transflective 640 × 480 pixel display
with outdoor mode helps make A-scans clear in difficult lighting
conditions
• Tough and Reliable: Engineered to IP65/67 for dust and water
resistance and drop tested to protect against the hazards
found in rope access inspection environments
2 3
Harness the Power of Portability
No Compromises
Don’t compromise on the inspection capabilities of your flaw detector. Now, inspectors who work in rope access applications
can take advantage of the functionality they need in an instrument that attaches to their leg or harness for
hands-free operation.
Combine the EPOCH® 6LT flaw detector with the rope access accessory kit for added functionality that helps keep rope
access technicians safe during challenging inspections. The instrument fits snugly in a protective soft case that can be
securely attached to a user’s leg with the included strap or fastened to the user’s harness connection points with adjustable
safety leads. However you attach it, the kit keeps the instrument in a comfortable, secure viewing position.
With the unit secured, it’s easy to make parameter adjustments with one hand, leaving the other hand free to manipulate
the transducer or maintain balance and personal safety. The display rotates to portrait or landscape mode for optimal
A-scan viewing while the knob and buttons remain readily accessible for quick adjustments. If you’re working in a hazardous
environment, add an optional screen cover for additional protection.
The workflow of the EPOCH® 6LT flaw detector is simple and straightforward. The primary screen is a large, optimized A-scan
display that contains links to commonly used features and functions. Combined with an improved scanning workflow, users
can complete their inspections with minimal button presses and adjustments. When you do need to navigate the menu,
prominent icons make it easy to find the feature you’re looking for.
Despite its small size, the EPOCH 6LT flaw detector meets the requirements of nearly any conventional ultrasonic inspection
application and includes additional functionality for expanded connectivity.
More Functionality on the Go
• Intuitive Navigation: Two-screen, icon-based interface
• Optimized for One-Handed Operation: Hardware and
software maximize efficient one-handed operation
• Advanced Flaw Detection Capabilities: All the core
functionality of the EPOCH 650 flaw detector and meets the
requirements of EN12668-1:2010
• Fast Corrosion Defect Scanning: Optional corrosion
software combines the ease of a thickness gage with the
flexibility of a flaw detector and includes center-pin transducer
ID for faster set up
• Stay Connected: Optional wireless LAN (Wi-Fi) connectivity
for on-the-go data backups, setup downloads, efficient fleet
management, and powerful applications through the Olympus
Scientific Cloud
4 5
6 7
Rope Access Inspection Applications Powerful Corrosion and Flaw Inspection Software
Corrosion Module
With the optional corrosion module, get the best of thickness measurement and UT corrosion scanning in one instrument.
Get accurate measurements from the software’s thickness measurement algorithm, true V-path correction that accounts for
the angle of dual element transducers, and ‘do zero’ that compensates for wear on the transducer’s contact plate.
For speed and efficiency, the software enables the use of thickness gage transducers, making it easy to add a flaw detector
to your fleet of instruments. With automatic probe recognition, the software recognizes and automatically configures the
instrument for that probe. Likewise, when the AGC feature detects the probe’s signal, it optimizes the gain for optimal
thickness measurements. Once the user begins their corrosion scanning, the grid view feature makes it easy to save
thickness measurements onboard the instrument rather than having to manually record readings.
Efficient Data Management
• Compatible with GageView® Pro PC interface program
• Export files via Wi-Fi or transfer to a removable USB memory
stick
• Supports bitmap (BMP), comma-separated value (CSV), and
PDF file formats
Connected and Cloud Enabled
The EPOCH® 6LT flaw detector features cloud connectivity.
Connect your flaw detector to the Olympus Scientific Cloud
for powerful cloud-based tools, including:
• Wireless firmware upgrade
• File backup and archiving
• Remote file access and management
Cloud file management includes all EPOCH 6LT file types, as
well as exported report formats and image files. This remote
data sharing capability makes it easier than ever to report
and communicate your inspection results.
Standard Software Features
• Dynamic DAC/TCG: compares echo signals to a DAC curve
or reference echo
• DGS/AVG: compares echo signals to a DGS/AVG diagram
Added Versatility:
Optional Software Features
• AWS D1.1 and D1.5: Provides a dynamic indication rating for
AWS inspection applications
• Back Wall Echo Attenuator: Attenuates the back wall of an
inspected part using the screen region defined by Gate 2
Offshore Platform
Inspections
With an innovative corrosion software
option and a comprehensive set
of weld-related support features,
corrosion scanning is fast and efficient,
even while suspended above the
ocean from a rope.
Corrosion Module Features
• Automatic probe recognition and
configuration with center pin ID
• Dynamic toggle between flaw scanning
and high precision spot measurement
modes
• Automatic Gain Control (AGC)
• Thickness gage high precision
measurement algorithm
• Automatic zero function (‘do zero’)
• Grid view for data visualization
Weld Flaw Detection
and Sizing Features
• DAC/TCG
• DGS/AVG
• AWS D1.1/1.5 weld rating calculator
In-Service Wind Turbine
Inspection
Whether you’re inspecting the welded
joints of a wind tower or composite
turbine blades, the EPOCH® 6LT flaw
detector is up to the challenge.
• PerfectSquare™ tunable square wave
pulser
• Digital high dynamic range receiver
• Eight 100% digital filter sets, including
low frequency bandwidth support
• Pulser voltage up to 400 V
• DAC/TCG and DGS/AVG software
functionality included
Bridge and Structural
Steel Inspections
The EPOCH 6LT flaw detector offers
all of the necessary features for bridge
and structural steel inspections,
including an optional AWS D1.1/1.5
weld rating calculator. Other feature
requirements, such as DAC/TCG and
DGS/AVG, are included with every
EPOCH 6LT flaw detector.
• PerfectSquare tunable square wave
pulser
• Digital high dynamic range pulser/
receiver
• Eight 100% digital filter sets
• Pulser voltage from 100 V to 400 V
• Five customizable digital measurements
Standard Flaw Sizing Software
• DAC/TCG
• DGS/AVG
www.olympus-ims.com
EPOCH_6LT_Rope_Acess_EN_201706 • Printed in the USA • P/N: 920-444-EN Rev. A
48 Woerd Avenue, Waltham, MA 02453, USA, Tel.: (1) 781-419-3900
110 Magellan Circle, Webster TX, 77598, USA, Tel.: (1) 281-922-9300
505, boul. du Parc-Technologique, Québec (Québec) G1P 4S9, Tel.: (1) 418-872-1155
1109 78 Ave, Edmonton (Alberta) T6P 1L8For inquiries - contact
www.olympus-ims.com/contact-us
is certified to ISO 9001, ISO 14001, and OHSAS 18001.
*All specifications are subject to change without notice.
All brands are trademarks or registered trademarks of their respective owners and third party entities.
PerfectSquare is a trademark and EPOCH and GageView are registered trademarks of Olympus Corporation.
Copyright © 2017 by Olympus.
EPOCH® 6LT Specifications
General
User Interface Languages English, Spanish, French, German, Japanese, Chinese,
Portuguese, Russian, Italian
Transducer connections LEMO 00
Data storage 100,000 IDs onboard
Battery type and life Single lithium-ion rechargeable standard; 6 h life
Power requirements AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC,
50 Hz to 60 Hz
Display type Full VGA (640 × 480 pixels) transflective color LCD,
60 Hz update rate
Display dimensions (W × H, Diag.) 117 mm × 89 mm, 146 mm (4.62 in. × 3.49 in., 5.76 in.)
Overall Dimensions (W × H × D) 209 mm × 128 mm × 36 mm, 58 mm at the hand grip
(8.2 in. × 5 in. × 1.4 in., 2.3 in. at the hand grip)
Weight 890 g (1.95 lb.), including lithium-ion battery
Instrument Inputs/Outputs
USB ports (1) USB 1.1 Full Speed Host (Type A)
(1) USB 2.0 Full Speed Client (Type Mini B)
Video output 1 digital video output
Environmental Ratings
IP rating Ingress Protection (IP) engineered to IP67 (dust tight and
water submersion) and IP65 (dust tight and water jets)
per IEC 60529-2004 (Degrees of Protection provided by
enclosures—IP Code).
Explosive atmosphere MIL-STD-810F, Method 511.4, Procedure 1.
Shock tested MIL-STD-810F, Method 516.5, Procedure I, 6 cycles
each axis, 15 g, 11 ms half sine.
Vibration tested MIL-STD-810F, Method 514.5, Procedure I, Annex C,
Figure 6, general exposure: 1 hour each axis.
Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
Battery storage temperature 0 °C to 50 °C (32 °F to 122 °F)
Pulser
Pulser Tunable square wave
PRF 10 Hz to 2000 Hz in 10 Hz increments
Energy settings 100 V, 200 V, 300 V, or 400 V
Pulse width Adjustable from 25 nsec to 5,000 nsec (0.1 MHz) with
PerfectSquare™ technology
Damping 50, 400 Ω
Receiver
Gain 0 to 110 dB
Maximum input signal 20 Vp
Receiver input impedance 400 Ω ± 5%
Receiver bandwidth DC to 26.5 MHz at -3 dB (standard version)
0.2 to 26.5 MHz at -3 dB (EN12668 compliant version)
Digital filter settings 8 digital filter sets (standard version)
7 digital filter sets (EN12668 compliant version)
Rectification Full-Wave, Positive Half-Wave, Negative Half-Wave, RF
System linearity Horizontal: ± 0.5% FSW
Resolution 0.25% FSH, amplifier accuracy ± 1dB
Reject 0 to 85% FSH in 1% increment positions
Amplitude measurement 1.25% to 110% full screen height
Measurement rate Equivalent to PRF in all modes (single shot)
Calibration
Automated calibration Velocity, zero offset
Straight beam (first back wall or echo-to-echo)
Angle beam (sound path or depth)
Test modes Pulse echo, dual, or through transmission
Units Millimeters, inches, or microseconds
Range 4.31 mm to 6,700 mm at 5,900 m/s (0.2320 in./μs)
Velocity 635 m/s to 15240 m/s (0.0250 in./μs to 0.6000 in./μs)
Zero offset 0 to 750 μs
Display delay -10 microseconds to 2203 microseconds
Refracted angle 0° to 85° in 0.1° increments, then jump to 90°
Gates
Measurement gates 2 fully independent flaw gates
Gate start Variable over entire displayed range
Gate width Variable from 0.040 microseconds to end of displayed
range
Gate height Variable from 2 to 95% full screen height in 1%
increments
Alarms Positive and negative threshold/curve, minimum depth
(gate 1 and gate 2)
Measurements
Measurement display locations 5 locations available (manual or auto selection)
Gate (1, 2) Thickness, sound path, projection, depth, amplitude,
time-of-flight, min./max. depth, min./max. amplitude,
sizing measurements based on mode
Echo-to-echo Standard gate 2 – gate 1
DAC/TCG Standard, up to 50 points, 110 dB dynamic TCG range
Special DAC modes Custom DAC (up to 6 curves), 20–80% view
Curved surface correction Standard OD or bar correction for angle beam
measurements
Software Options
EP6LT-AWS (Q1400007):
AWS D1.1/D1.5 weld rating calculator
EP6LT-CORRSN (Q1400008):
Corrosion module
EP6LT-BEA (Q1400009):
Back wall echo attenuation gate
Optional Accessories
BATT-10025-0024 (Q7600001):
Lithium-ion rechargeable battery
EP-MCA-X:
EPOCH series charger / adaptor with
power cord
HNDL-10018-0001 (Q7790068):
EPOCH 6LT wrist strap
EPLTC-C-USB-A-6 (U8840031):
USB cable, mini A to mini B
CASE-10042-0001 (Q7640003):
EPOCH 6LT transport case
600-DP (U8780297):
Display protectors (10 pack)
EP6LT-KIT-ROPE (Q7790069):
EPOCH 6LT rope access accessory kit
EP4/CH (U8140055):
EPOCH series chest harness
EP6LT-STAND (Q7790070):
EPOCH 6LT desktop stand
EPXT-EC-x:
EPOCH series external charging base
with power cord
EPOCH® 6LT Portable Flaw Detector
Don’t compromise on the inspection capabilities of your flaw detector. Now, inspectors who work in rope access applications can take advantage of the functionality they need in an instrument that attaches to their leg or harness for hands-free operation. The EPOCH® 6LT flaw detector combines ruggedness and ease of use in an instrument designed to be operated using only one hand, enabling fast, efficient rope access inspections and maximum uptime.
Jul 11, 2017
