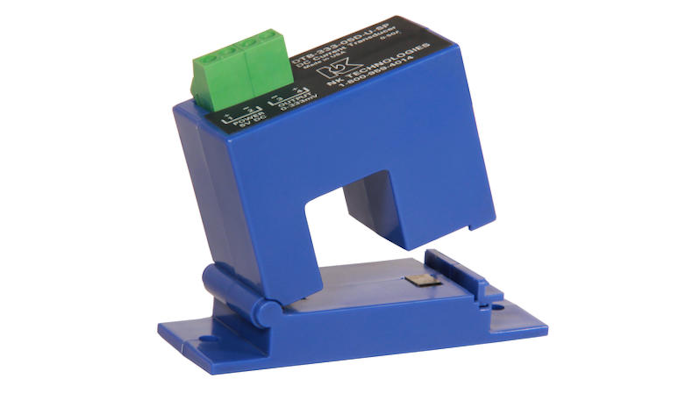

DC Current Transducer

Company introduces the DT Series DC Current Transducer with ambient temperature compensation for increased usability and accuracy. The DT Series improved accuracy is due to a new patent-pending, microprocessor-based method of signal conditioning – sensor output is automatically adjusted as temperature changes (e.g. installers do not need to add algorithms to adjust output as ambient temperature varies), eliminating one of the primary issues with Hall Elements-based products. The added signal conditioning can also eliminate the need to heat/cool the control equipment encloser, reducing considerable expense.

The DT Series is ideal for applications such as measuring photovoltaic output in panels producing less than 50 amps or less than 100 amps, as well as monitoring smaller DC motors (used in conveyors and other material positioning equipment) and electrical heaters. Key features include:
• Temperature range: -20°C to +50°C
• 333mVDC, 5 or 10 VDC output proportional to DC current
• 5 VDC or 12 VDC powered
• Monitors circuits of 600 V or lower
• Housed in split-core package so existing wiring remains undisturbed
• “Finger-safe” power supply and output terminals
• Simple two-screw panel mount or DIN-rail brackets
• Safety standards: Designed to UL508,CE standards

NK Technolgies  www.nktechnologies.com
