Omron Automation and Safety’s G9SE Slim Safety Relay Unit Cuts Installation Time Up to 50% and Simplifies Troubleshooting

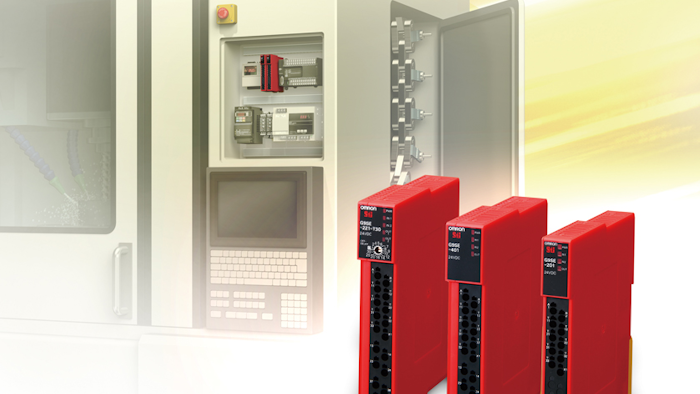

Omron Automation and Safety (www.omron247.com) introduces the G9SE Safety Relay Unit, a slim size safety relay unit that significantly reduces installation and troubleshooting time/costs for machine builders. The unit’s screw-less push-in terminal allows fast and easy installation, and with one of the slimmest profiles on the market it requires significantly less panel space. The troubleshooting process is vastly simplified by the design and usage of intuitive diagnostic LEDs. Omron’s G9SE is ideal for a wide range of safety input devices such as emergency stop switches, door switches and light curtains.

Faster Installation:
Conventional safety relays are designed with terminals arranged one in front of the other; wires are then installed from the top and bottom. The problem is that once the front row of wires has been installed, the second row of terminals is difficult to access, in addition to taking more time to insert the wires and tighten the screws. The G9SE’s front access terminals allow for fast installation of wiring. Studies show that wiring can be completed in less than half the time it takes to install models with conventional style terminal blocks. Front access also allows for the terminal references to be easily located reducing wiring errors.

Simplified Troubleshooting:
Conventional safety relays typically only indicate operating status of internal relays with no clear indication as to where the error has occurred, which results in a time consuming and frustrating troubleshooting process. The G9SE has five diagnostic indicators that show the status of the inputs, outputs and power (along with the ability to show setting errors with the off time delay models), which greatly reduces troubleshooting time.

Key features of the G9SE safety relay unit include:
• Slim design (17.5 mm or 22.5 mm) to save mounting space
• Modules with two or four safety contacts and OFF-delay timing available
• Simple front-side wiring using screw-less terminals
• 15ms max response time
• Safe OFF delay function up to PLe
• Certification for lift standards EN 81-1, EN 81-2
• Up to PLe according to EN ISO13849-1 and SIL 3 according to EN 61508
