Ross Double Planetary Mixers are offered in 4-, 5-, 10- and 25-gallon models for pilot-scale production of highly-filled pastes, dough-like materials, shear-sensitive gels, granulations and powder blends. These mixers are also used for vacuum drying of heat-sensitive applications at relatively low temperatures.

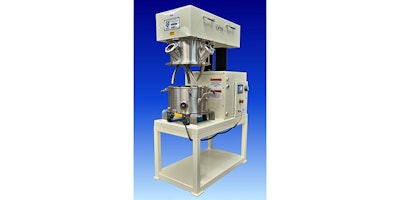

Pictured is a Ross Model DPM-4 with High Viscosity “HV” Blades ideal for heavy-duty mixing of viscous materials up to 6 million centipoise. The helical curve and graduated down-thrust cross-section of the HV Blades prevent product from climbing up into the cover. The stirrers pass through every point in the vessel, promoting very thorough mixing as well as uniform temperature by constantly exchanging materials near the vessel’s jacketed sidewalls. Vacuum capability allows users to remove air from the batch before starting the agitators or during the mixing cycle, leading to smooth void-free finished products without the need for additional defoaming or deaeration post-mixing.
Laboratory models start from half-pint size up to 2 gallons. Full-scale production models range from 40 to 1,000 gallons.
Charles Ross & Son Company www.mixers.com
