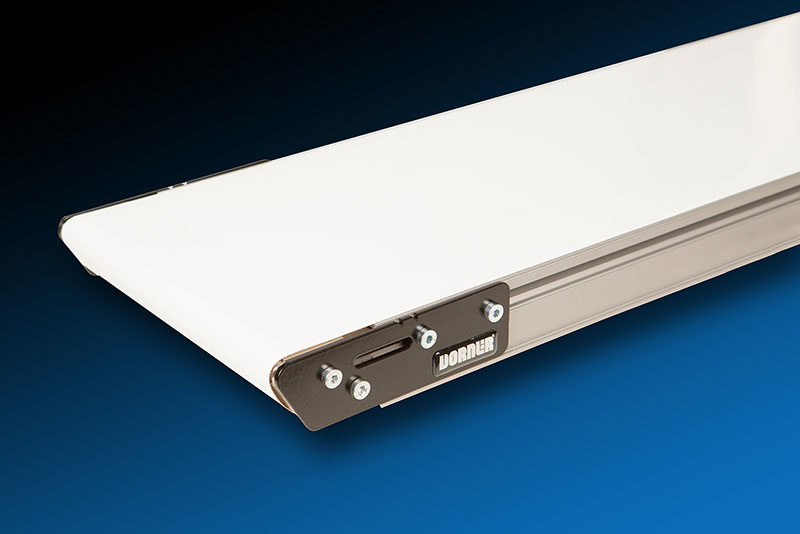

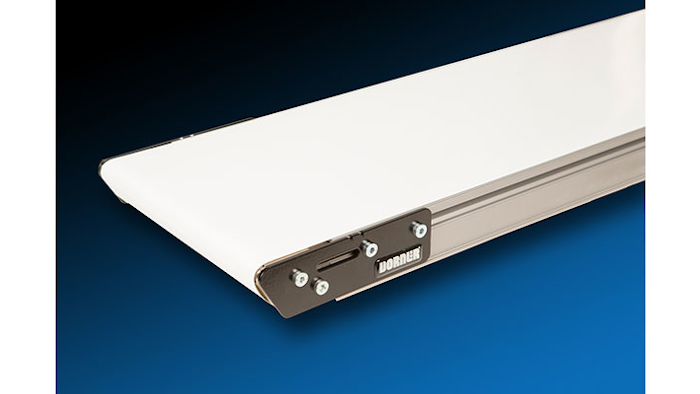

2200 Series Belt Conveyors

A high speed nose bar transfer option, redesigned frame, additional belting and expanded guiding make the company's newly redesigned 2200 Series low profile belt conveyors even better than before.

Mnet 150368 Dorner Product Outside Listing
Mnet 150369 Dorner Product Inside Listing

A high speed nose bar transfer option, redesigned frame, additional belting and expanded guiding make the company's newly redesigned 2200 Series low profile belt conveyors even better than before.

What makes this redesign significant to customers is that the company took the “good” from its best-selling conveyor platform and made it better. This equals a conveyor platform that’s stronger, faster and more flexible for handling small to medium size part applications.

The 2200 Series features a stronger, single piece frame design that reduces the overall number of needed stands. The frame comes with a Universal T-Slot that is compatible with industry standard hardware and makes attaching accessories and guiding fast and simple.

Additionally, a 5/8” nose bar transfer option with V-Guided belt tracking safely transfers parts at speeds of up to 200 feet per minute for increased productivity. New tool-less fully adjustable guiding provides customers with added flexibility to further customize their conveyors to best fit their needs. Other improvements to the 2200 Series include new belting options and additional conveyor widths.

The 2200 Series end drive conveyors can be equipped with the company’s recently released Universal Drive, which provides flexibility in design layout and simplifies spare part management with a single part number that covers all speeds, loads and mounting position.

Features of the newly redesigned 2200 Series Belt Conveyors include:

  • Widths between 1.75” – 24”; lengths between 18” – 24’
  • Load capacity up to 120 pounds; belt speeds up to 400 feet per minute
  • Precise rack and pinion belt tensioning allows for fast and simple tensioning
  • Sealed for life bearings reduces maintenance
  • Engineered for applications involving small to medium part handling; transfers; accumulation, automated and manual assembly

Dorner Manufacturing  www.dornerconveyors.com
