Carbon-Graphite Piston Rings

The piston rings are used in conjunction with carbon-graphite guide rings or carrier rings, which hold the piston centered on a cylinder bore.

title
title

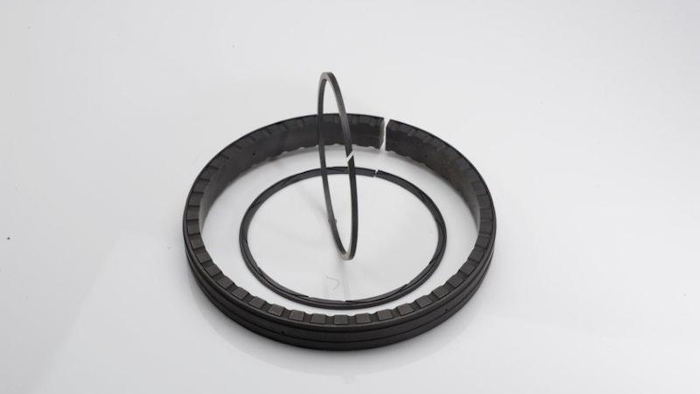

Metallized Carbon Corporation, a global leader in the manufacture of oil-free, self-lubricating, carbon-graphite materials for severe service lubrication applications, announces the availability of carbon-graphite for use in piston rings needed to seal high pressure gas in applications requiring compressed gases that do not contain oil or grease. The piston rings are used in conjunction with carbon-graphite guide rings or carrier rings, which hold the piston centered on a cylinder bore.
Metcar’s self-lubricating, carbon-graphite piston rings and guide rings are used extensively in reciprocating compressors, where oil-free gases, such as air, steam, refrigerants, hydrogen, hydrocarbons, chlorine, nitrogen and oxygen can be compressed to pressures greater than 800 pounds per square inch (psi.)
Guide rings can be either solid rings or segmented rings with butt joints. Metcar’s segmented, carbon-graphite, piston rings with overlapped joints are placed in a radial groove in the reciprocating piston with little clearance between the width of the groove and the width of the piston ring. At least two rings with off-set segment joints are needed to seal to pressures of 100 psi. Extra sets of rings are needed to seal higher pressures.
