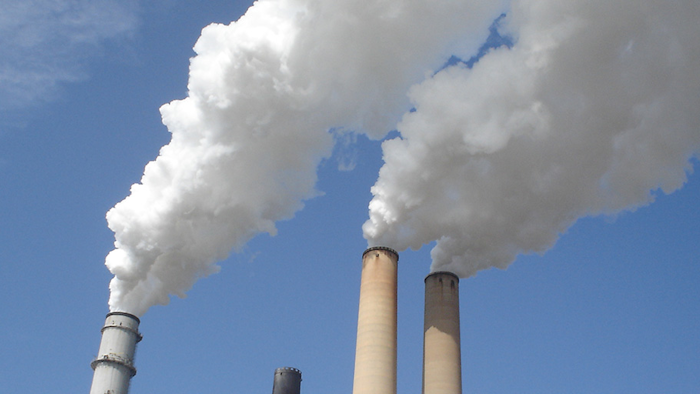

Imagine a day when—rather than being spewed into the atmosphere—the gases coming from power plants and heavy industry are instead captured and fed into catalytic reactors that chemically transform greenhouse gases like carbon dioxide into industrial fuels or chemicals and that emit only oxygen.
It's a future that Haotian Wang says may be closer than many realize.
A Fellow at the Rowland Institute at Harvard, Wang and colleagues have developed an improved system to use renewable electricity to reduce carbon dioxide into carbon monoxide—a key commodity used in a number of industrial processes.
"The most promising idea may be to connect these devices with coal-fired power plants or other industry that produces a lot of CO2," Wang said. "About 20 percent of those gases are CO2, so if you can pump them into this cell...and combine it with clean electricity, then we can potentially produce useful chemicals out of these wastes in a sustainable way, and even close part of that CO2 cycle."
The new system, Wang said, represents a dramatic step forward from the one he and colleagues first described in a 2017 paper in Chem.
Where that old system was barely the size of a cell phone and relied on two electrolyte-filled chambers, each of which held an electrode, the new system is cheaper and relies on high concentrations of CO2 gas and water vapor to operate more efficiently—just one 10-by-10-centimeter cell, Wang said, can produce as much as four liters of CO per hour.
The new system, Wang said, addresses the two main challenges—cost and scalability—that were seen as limiting the initial approach.
"In that earlier work, we had discovered the single nickel-atom catalysts which are very selective for reducing CO2 to CO...but one of the challenges we faced was that the materials were expensive to synthesize," Wang said. "The support we were using to anchor single nickel atoms was based on graphene, which made it very difficult to scale up if you wanted to produce it at gram or even kilogram scale for practical use in the future."
To address that problem, he said, his team turned to a commercial product that's thousands of times cheaper than graphene as an alternative support—carbon black.
Using a process similar to electrostatic attraction, Wang and colleagues are able to absorb single nickel atoms (positively charged) into defects (negatively charged) in carbon black nanoparticles, with the resulting material being both low-cost and highly selective for CO2 reduction.
"Right now, the best we can produce is grams, but previously we could only produce milligrams per batch," Wang said. "But this is only limited by the synthesis equipment we have; if you had a larger tank, you could make kilograms or even tons of this catalyst."
The other challenge Wang and colleagues had to overcome was tied to the fact that the original system only worked in a liquid solution.
The initial system worked by using an electrode in one chamber to split water molecules into oxygen and protons. As the oxygen bubbled away, protons conducted through the liquid solution would move into the second chamber, where—with the help of the nickel catalyst—they would bind with CO2 and break the molecule apart, leaving CO and water. That water could then be fed back into the first chamber, where it would again be split, and the process would start again.
"The problem was that, the CO2 we can reduce in that system are only those dissolved in water; most of the molecules surrounding the catalyst were water," he said. "There was only a trace amount of CO2, so it was pretty inefficient."
While it may be tempting to simply increase the voltage applied on the catalyst to increase the reaction rate, that can have the unintended consequence of splitting water, not reducing CO2, Wang said.
"If you deplete the CO2 that's close to the electrode, other molecules have to diffuse to the electrode, and that takes time," Wang said. "But if you're increasing the voltage, it's more likely that the surrounding water will take that opportunity to react and split into hydrogen and oxygen."
The solution proved to be relatively simple—to avoid splitting water, the team took the catalyst out of solution.
"We replaced that liquid water with water vapor, and feed in high-concentration CO2 gas," he said. "So if the old system was more than 99 percent water and less than 1 percent CO2, now we can completely reverse that, and pump 97 percent CO2 gas and only 3 percent water vapor into this system. Before those liquid water also functions as ion conductors in the system, and now we use ion exchange membranes instead to help ions move around without liquid water.
"The impact is that we can deliver an order of magnitude higher current density," he continued. "Previously, we were operating at about ten milliamps-per-centimeter squared, but today we can easily ramp up to 100 milliamps."
Going forward, Wang said, the system still has challenges to overcome—particularly related to stability.
"If you want to use this to make an economic or environmental impact, it needs to have a continuous operations of thousands of hours," he said. "Right now, we can do this for tens of hours, so there's still a big gap, but I believe those problems can be addressed with more detailed analysis of both the CO2 reduction catalyst and the water oxidation catalyst."
Ultimately, Wang said, the day may come when industry will be able to capture the CO2 that is now released into the atmosphere and transform it into useful products.
"Carbon monoxide is not a particularly high value chemical product," Wang said. "To explore more possibilities, my group has also developed several copper-based catalysts that can further reduce CO2 into products that are much more valuable."
(Source: Harvard University)
