Alkane fuel is a key ingredient in combustible material such as gasoline, airplane fuel, oil — even a homemade bomb. Yet it's difficult to detect and there are no portable scanners available that can sniff out the odorless and colorless vapor.
But University of Utah engineers have developed a new type of fiber material for a handheld scanner that can detect small traces of alkane fuel vapor, a valuable advancement that could be an early-warning signal for leaks in an oil pipeline, an airliner, or for locating a terrorist's explosive.
Their discovery was published online Friday, March 25, in the American Chemical Society's journal, ACS Sensors. The team is led by University of Utah materials science and engineering professor Ling Zang, who also is a faculty member with the Utah Science, Technology and Research (USTAR) economic development initiative.
Currently, there are no small, portable chemical sensors to detect alkane fuel vapor because it is not chemically reactive. The conventional way to detect it is with a large oven-sized instrument in a lab.
"It's not mobile and very heavy," Zang says of the larger instrument. "There's no way it can be used in the field. Imagine trying to detect the leak from a gas valve or on the pipelines. You ought to have something portable."
So Zang's team developed a type of fiber composite that involves two nanofibers transferring electrons from one to the other.
"These are two materials that interact well together by having electrons transferring from one to another," says Ben Bunes, a postdoctoral fellow in the University of Utah's materials science and engineering department. "When an alkane is present, it sticks in between the two materials, blocking the electron transfer between the two nanofibers."

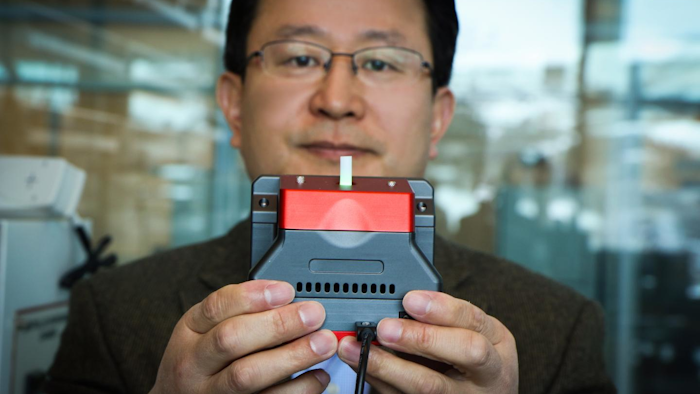

That kind of interaction would then signal the detector that the alkane vapor is present. Vaporsens, a University of Utah spin-off company, has designed a prototype of the handheld detector with an array of 16 sensor materials that will be able to identify a broad range of chemicals including explosives. This new composite material will be incorporated into the sensor array to include the detection of alkanes. Vaporsens plans to introduce the device on the market in about a year and a half, says Zang, who is the company's chief science officer.
Such a small sensor device that can detect alkane vapor will benefit three main categories:
- Oil pipelines. If leaks from pipelines are not detected early enough, the resulting leaked oil could contaminate the local environment and water sources. Typically, only large leaks in pipelines can be detected if there is a drop in pressure. Zang's portable sensor -- when placed along the pipeline -- could detect much smaller leaks before they become bigger.
- Airplane fuel tanks. Fuel for aircraft is stored in removable "bladders" made of flexible fabric. The only way a leak can be detected is by seeing the dyed fuel seeping from the plane and then removing the bladder to inspect it. Zang's sensors could be placed around the bladder to warn a pilot if a leak is occurring in real time and where it is located.
- Security. The scanner will be designed to locate the presence of explosives such as bombs at airports or in other buildings. Many explosives, such as the bomb used in the Oklahoma City bombing in 1995, use fuel oils like diesel as one of its major components. These fuel oils are forms of alkane.
