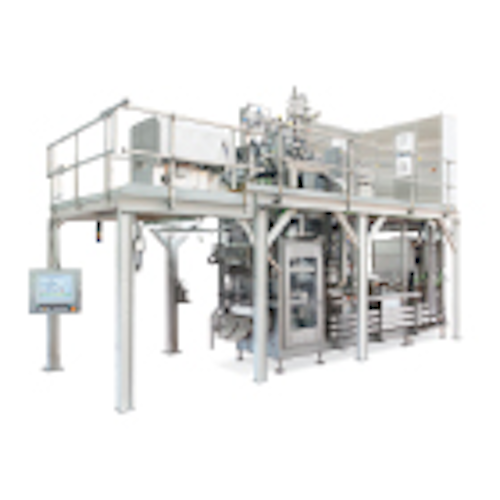

Aseptic Pouch Form-Fill-Seal Machine

Offering product-specific filling systems with high filling accuracy, the SAS 20/30 FFS Machine can produce stick packs from 60-225mm in length, 26-80mm wide and at volumes of up to 250ml. It can produce as many as 24,000 stick packs per hour.

title
title

Offering product-specific filling systems with high filling accuracy, the SAS 20/30 FFS Machine can produce stick packs from 60-225mm in length, 26-80mm wide, and at volumes of up to 250ml. It can produce as many as 24,000 stick packs per hour. Designed and manufactured in accordance with international hygienic standards, the SAS 20/30 FFS Machine can operate as many as eight lanes. After manufacturing the aseptic stick packs by sterilizing foil on all sides, the machine then fills and seals these pouches under aseptic conditions in a sterile tunnel. Among the SAS 20/30 FFS Machine’s features are specially developed forming shoulders coated with either titanium-nitride or chlorine-nitride. Mathematically pre-calculated and Computer Numerical Control (CNC) fabricated, the shoulders lead to forming whose accuracy is 100% reproducible. The SAS 20/30 forms three-sided stick packs, which use up to 40 percent less material than their more conventional four-sided counterparts.

OYSTAR USA www.oystar-group.com
