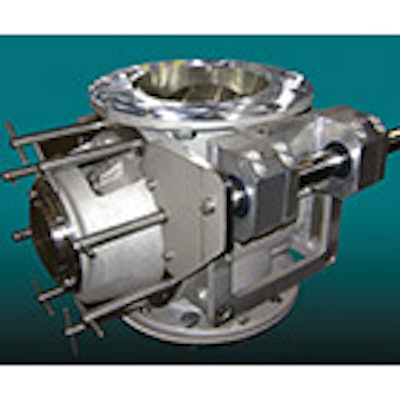

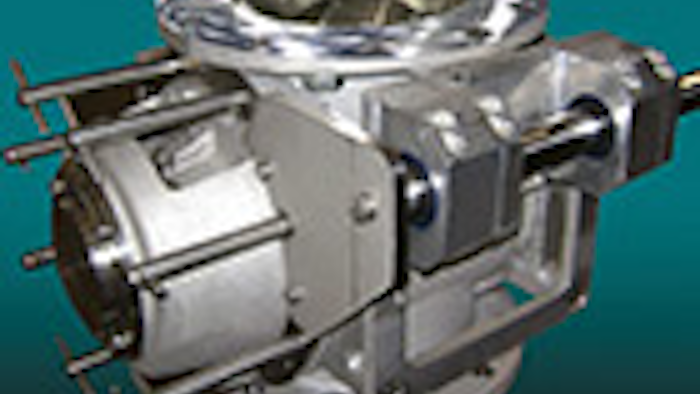

The cleanable round airlock (CRA), from Mac Process, was designed specifically for food, pet food and chemical industry applications, where
equipment must meet challenging sanitary requirements. CRA allows easy cleaning and inspection, increases throughput with faster change-overs, and delivers value-conscious clean design. Just a few steps are involved in both de-mounting and re-engaging the rotor using a specially designed linear rail system. The airlock can handle high process rates, making the cleanable technology system suitable for applications with high product volume. The oversized rotor shaft creates a naturally radiused rotor pocket for more complete product release. The components used in product contact areas, including the seals, are constructed of FDA approved materials and all lubrication in product zones are NSF H1 and H2 rated. Designs are also available for NFPA 69 isolation valve requirements. The airlock is also offered in 8” - 14” sizes with CFR ranges from .17 to 2.31, assuming 100% pocket fill.
Mac Process
