Clean Room Container Handling

The RFPC Rotary Monoblock from Cozzoli is designed to perform multiple functions in a Class 100 clean room environment.

Feb 5, 2014

title

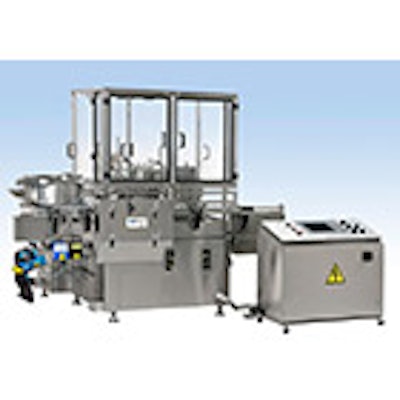

The RFPC Rotary Monoblock from Cozzoli is designed to perform multiple functions in a Class 100 clean room environment. These machines can fill, stopper, plug, or screw cap up to four containers at a time, performing each of the operations in synchronization on a common frame—all in less than 45 sq. ft. of floor space. Depending upon the model and accessories selected, the machines can unscramble, fill, stopper, plug, screw cap and or tray load vials at speeds of up to 220 per minute with filling accuracy of +\- 0.5%. The machine is PLC controlled and features a stainless steel exterior and all liquid contact parts of 316L stainless steel. It has a raised sanitary conveyor that transports containers to and from the filling/plugging/capping area and comes with a no plug/no cap detection system. The low profile frame, remote plug and cap pick up stations and open flow-through design of the central star-wheel enhance the passage of laminar air flow and minimize turbulence. The series can handle various container shapes and sizes and a wide range of products from aqueous to heavy oils, suspensions and creams.
