More Valve Versatility!

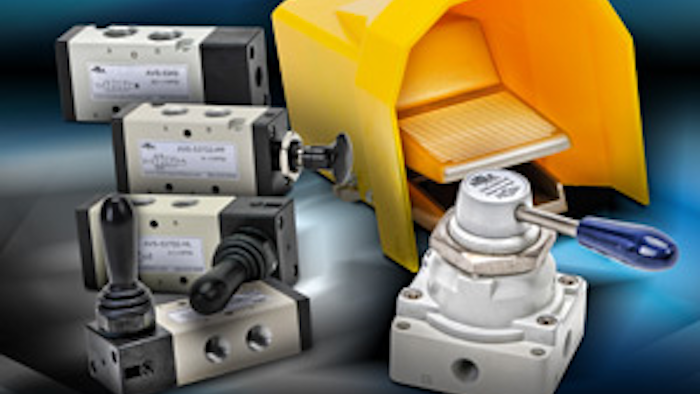

AutomationDirect's NITRA® pneumatic products now include air pilot, foot pedal and manual control valves, and the AVS-5 includes directional control air pilot valves.

AutomationDirect has extended its NITRA® line of pneumatic products with air pilot valves, foot pedal valves and manual control valves, whereas the AVS-5 Series now includes single- and double-pilot directional control air pilot valves. More specifically:

  • The AVS-5 Series offers both spring return or center closed operation. All are body ported 5-port (4-way) spool valves available in 1/8- to 1/2-inch NPT port sizes with flow coefficients from 0.67 to 2.79.
  • The NITRA CVS Series directional control foot pedal valves are also 5-port (4-way) spool valves designed for non-electrical operator control applications. Available in momentary or latching operation models, foot pedal valves feature a 1/4-inch NPT port with a flow coefficient of 0.80.
  • NITRA manual valves come in toggle-style hand lever, push-pull and rotary-style hand lever models with aluminum alloy bodies. Port sizes range from 1/8- to 1/2-inch NPT with flow coefficients from 0.78 to 5.29. Moreover, the models are available in 2- or 3-position detented styles.
