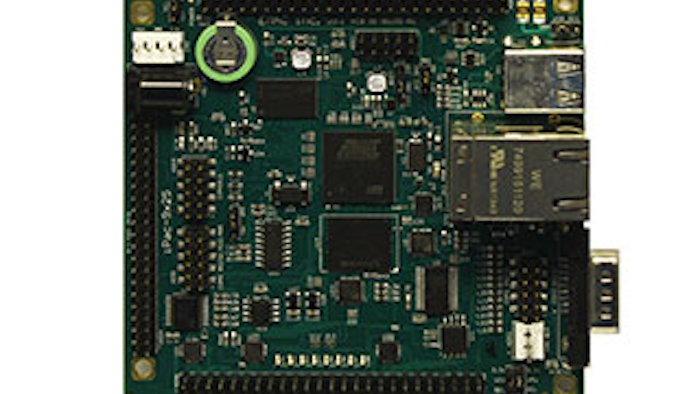

Carbondale, Illinois - EMAC, Inc., a leader in compact low power single board computer design and manufacturing has created the iPAC-9X25. Made in the USA this industrial strength ARM embedded single board computer is based on Atmel AT91SAM9X25 Processor. It has an industrial temperature range of -40C to +85C and utilizes 4GB of eMMC Flash, 16MB of Serial Data Flash (for boot), and 128 MB of DDR RAM.
The iPac-9X25 is a web enabled microcontroller with the ability to run an embedded server and to display the current monitored or logged data. The web connection is available via two 10/100 Base T Ethernet ports or 802.11 wireless wifi networking when using the proper Linux modules and adapters. This Microcontroller has all connectors brought out as headers on a board and has the same footprint of a standard PC/104 module at 3.77" x 3.54". The iPAC-9X25 is perfectly suited for Industrial Temperature Embedded Data Acquisition and Control applications.
The iPAC 9X25 has one RS232 serial port with full handshake (RTS/CTS/DTR/DSR/RI), two RS232 serial ports (TX and RX only), one RS232/422/485 serial port with RTS/CTS handshake, two 10/100 Base T Ethernet ports, two USB 2.0 Host ports, and one USB Device port. The board has up to 7 channels of 10 bit A/D (0 to 3.3 volt) and an internal real time clock/calendar with battery backup. It also includes 21 GPIO (3.3 V) lines on header, 8 high drive open collector dedicated digital output lines with configurable voltage tolerance, 16 GPIO (3.3V) on header, 2 PWM I/O lines with additional 4 PWN lines shared with A/D. The iPAC-9x25 has 5 Synchronous Serial I/O lines (I2S), 5 SPI lines (2 SPI CS), I2C Bus, CAN Bus, a micro SD socket, an external Reset Button provisions and red Power and Green status LEDs.
For more information or quantity pricing please visit www.emacinc.com.
