Preventive Fire and Dust Explosion
Protection
GreCon, Inc.
Terry Franklin
02.15.2016
In any type of production facility, fire control encompasses a wide range of
equipment or systems from building sprinklers to plant site fire departments. A
spark detection & extinguishing system must be thought of as part of a plant’s
overall security and safety network. Just as a residential alarm system provides
protection to a homeowner, a spark detection system provides preventive
protection against potential loss of human life, production facilities, equipment
and costly downtime.
! !
GreCon, Inc.
15875 SW 74th Ave, Tigard, Oregon 97224 • (503) 641-7731 • www.grecon-us.com
Where do Spark Streams Appear?
Spark streams in dust collection systems are a very common danger. They are not
easily detected and this means that they may exist but are not known! Consequently,
attention is paid to a spark stream only when it is too late, namely when there has been
an explosion or a fire.
When working with industrial machinery, sparks are created very quickly. A blunt tool, a
damaged bearing in the fan, an overheated motor or foreign body within the material can
be the cause.
Sparks are a constant danger in those factories where combustible materials are being
worked, exhausted, transported, filtered or dried.
The damage statistics provided by the insurance companies point out that filters, dust
collection bins, silos and even complete production lines are the areas of a plant at
greatest risk. Foreign bodies in the conveyed material, defective parts of the production
machinery, friction processes as well as electrical sparks are all identified as fire
generating.
Why are Spark Streams so Dangerous?
In today’s production plants, we have to cope with all elements that can lead to fire
damage or cause an explosion. Extraction systems and pneumatic conveyors increase
the danger of fire. Once sparks and glowing embers are created, the pneumatic
extraction system conveys this danger very quickly to other subsequent areas of the
plant. The danger is when two of the three elements necessary for the creation of fires
and explosions are transported, namely: air and ignition sources (sparks).
When this conveyed danger meets combustible materials (filter cloth, deposited and
combustible dust in a separator or silo) it becomes more and more likely that a reaction
will happen.
Environmental protection measures regarding dust emissions and tightened regulations
for air pollution led to an increased use of filter systems, but the danger of dust
explosions has not been reduced. In the process of drying, the dryer capacities have
been steadily increased so that prevention of fires in these systems has become more
important than ever.
What happens after a filter fire? Environmental regulations prohibit plant operation
without the filter system. The plant will not only have the cost of repairing the damaged
filter system caused by fire but also absorb the extremely high loss of a production
shutdown.
These production losses can exceed the damage costs many times over.
! !
GreCon, Inc.
15875 SW 74th Ave, Tigard, Oregon 97224 • (503) 641-7731 • www.grecon-us.com
How can you take Preventive Measures?
For the creation of fires or explosions there must be three elements that are combined
simultaneously: combustible material, oxygen and an ignition source. Removal of one
of the elements will prevent a fire or explosion.
Protection can be achieved by installing a modern spark detection & extinguishing
system. The sensors detect sparks and glowing embers immediately after their creation.
Upon detection and evaluation, countermeasures are induced immediately in order to
eliminate the causes of a fire or an explosion.
Let us compare fire extinguishment systems with spark detection and extinguishment
systems. Fire extinguishing systems combat fire after it has come to life, consuming
material and air thus producing smoke and damage. A spark detection & extinguishing
system eliminates one of the three elements (the ignition source) before it becomes a
fire.
In this way there is no fire, no smoke, and no damage.
Detection of the ignition source is made by means of spark sensors recognizing the
infrared radiation of sparks and glowing particles. These sensitive spark sensors are
even capable of detecting sparks through layers of dust or through the conveyed dense
material flow. The sensors give alarm signals to the control console, which processes
the signals and activates the appropriate countermeasures automatically. Normally an
extinguishing device is triggered, which is installed downstream from the spark
detectors. This device releases a mist of water in the duct section where the sparks are
transported. When no additional sparks are detected, the extinguishment spray is
automatically stopped. While the extinguishment takes place, the production process can
continue unless otherwise desired.
Spark Detection Systems and Insurance Premium Rates
Fire insurance companies have acknowledged the minimized risk when automatic spark
detection and extinguishing systems are installed, and may grant discounts on insurance
premiums. Precondition for achieving discounts on premium rates is the use of an
extinguishment system that is approved by a commercial and industrial property
insurance and risk management organization. Factory Mutual is one such organization
and the only North American organization to test spark detection and extinguishment
systems. Factory Mutual requires stringent manufacturing standards and technical
reliability that not only applies to the system, but also to the planning, installation and
after-sales service.
! !
GreCon, Inc.
15875 SW 74th Ave, Tigard, Oregon 97224 • (503) 641-7731 • www.grecon-us.com
Safety for Your
Plant, People and Production
Spark Detection & Extinguishing Systems are among the most efficient and cost
effective fire prevention systems, which is a result of their highly developed technique
and reliability. The use of these systems for various applications is even prescribed by
Factory Mutual. All these factors lead to considerable investment reductions and
improved safety for your plant, people and production.

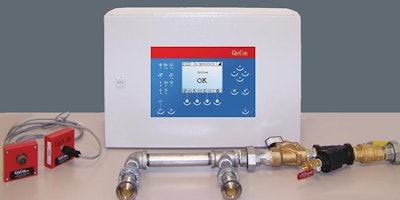

Spark!Detector!
Extinguishing!Device!
The!sensors!detect!sparks!and!embers!then!send!alarm!signals!!to!the!control!console,!which!processes!the!signals!and!!activates!the!appropriate!countermeasures!automatically.!
Contact Terry Franklin at 503.641.7731 or [email protected]
Sparks'
Water!Mist!
Preventive Fire and Dust Explosion Protection
Spark Detection & Extinguishing Systems are among the most efficient and cost effective fire prevention systems, which is a result of their highly developed technique and reliability. The use of these systems for various applications is even prescribed by Factory Mutual. All these factors lead to considerable investment reductions and improved safety for your plant, people and production. Learn how GreCon equipment ensures safer facilities, optimized production, and verifiable product quality.
