For diagnostic and Pass/Fail Testing —
Find, display, log, document: opens, shorts, miswires, intermittent connections, continuity, contact and isolation resistance, embedded resistors and diodes.
• 152 Test point base unit (for ≤76-conductor cable)
• Expandable to 2560 test points (for >76-conductor cable)
• Resistance measurement 0.3Ω-10MΩ

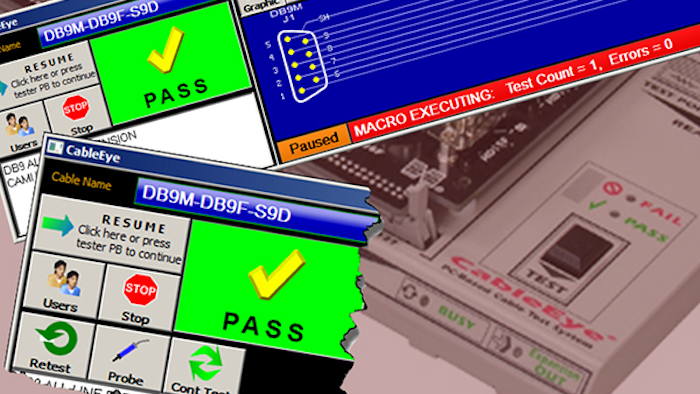

• Graphical User Interface (GUI)
• 9x12" bench footprint
◊ Includes: CB15 board set (Item 745), PC s/w, DB of >200 standard cables, 1yr warranty, 1yr free tech support, one-year free software and database upgrades. USB interface standard.
◊ If cables will never exceed 64 conductors, the M2-Basic system (Item 810) offers similar capabilities without resistance measurement at a lower cost.
