Hyundai Forklift Stand-Up Battery Lift Trucks

Hyundai Forklift introduces the BCS-9 stand-up counter-balanced battery lift trucks for narrow aisle operation in distribution and manufacturing environments. The three new models are available in 3,000, 3,500 and 4,000-pound capacities.

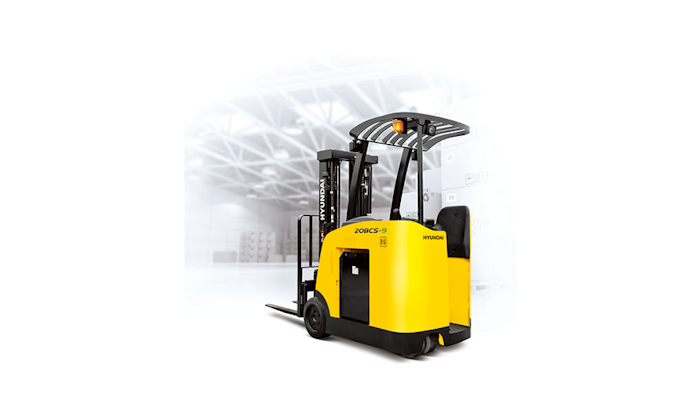

Mnet 174665 Hyundai Forklift 20 Bcs 9 1

Hyundai Forklift has introduced the BCS-9 stand-up counter-balanced battery lift trucks for narrow aisle operation in distribution and manufacturing environments. The three new models — 15BCS-9, 18BCS-9 and 20BCS-9 — are available in 3,000, 3,500 and 4,000 lb capacities.

“Like all Hyundai stand-up battery lift trucks, the smooth-running BCS-9 forklifts feature a compact design that delivers improved work efficiency and maximum space usage,” said Tim Webb, manager of marketing and product development at Hyundai Construction Equipment Americas. “The powerful and efficient dual drive motors with 100-percent AC technology enable superior throughput with faster speed.”

Performance

The powerful dual drive motors and four-wheel configuration deliver exceptional stability and gradeability. Designed for optimum reliability and efficiency while providing low noise levels, the AC motors on the Hyundai BCS-9 forklifts include temperature sensors to ensure longer motor life.

Equipped with on-demand steering, the forklifts’ hydraulic motors are activated while steering to reduce steering noise and energy consumption.

Convenience

The ergonomically designed operating system on the Hyundai BCS-9 lift trucks includes an adjustable armrest, a large, cushioned backrest and a contoured, minimal-effort joystick.

An advanced, 3.5-inch LCD color monitor with self-diagnostic system allows the operator to control the machine. The monitor provides such information as speed, steering wheel position, travel direction, battery discharge and work mode. The standard load indicator system measures the weight of the load being lifted.

Serviceability

The battery compartment on the Hyundai BCS-9 forklifts features a side battery removal assembly for easy removal and replacement.

Safety

At Hyundai Forklift, safety is a daily pursuit, starting with safety-conscious design. The BCS-9 models are equipped with advanced features that deliver enhanced operator and worksite safety.

The efficient, 8kHz high frequency ZAPI controller provides smooth, quiet operation and protection for low and high voltage, overheating and fault recording. When restarting on a slope, an anti-roll back function ensures operational safety.

Electric disc brakes provide emergency stopping and parking, and are actuated automatically when the pedal is released.

Industry-leading warranty

As with all Hyundai forklifts, the Hyundai BCS-9 stand-up counter-balanced battery lift trucks are protected by Hyundai’s industry-leading three-year, 4,000-hour standard warranty. Hyundai Forklift also offers customized extended warranties.

Product specifications

  • Load capacity: 15BCS-9: 3,000 lb. (1,361 kg); 18BCS-9: 3,500 lb. (1,588 kg); 20BCS-9: 4,000 lb. (1,814 kg)
  • Travel speed: 7.5 mph (12.1 km/h)
  • Battery: 15BCS-9: 36 volt / 1,085 Ah; 18BCS-9: 36 volt / 3,500 Ah; 20BCS-9: 36 volt / 1,240 Ah
  • Length to workface: 15BCS-9: 67.9 in (1,727 mm); 18BCS-9: 67.9 in (1,727 mm); 20BCS-9: 70.7 in. (1,797 mm)
  • Overall width: 42.0 in. (1,067 mm)
