Ready To Roll: New Ergonomic Casters Put Safety First

The patented new swivel caster design features two precision machined offsetting ball races in a compact assembly to minimize one of the final unresolved issues with swivel casters: lock up.

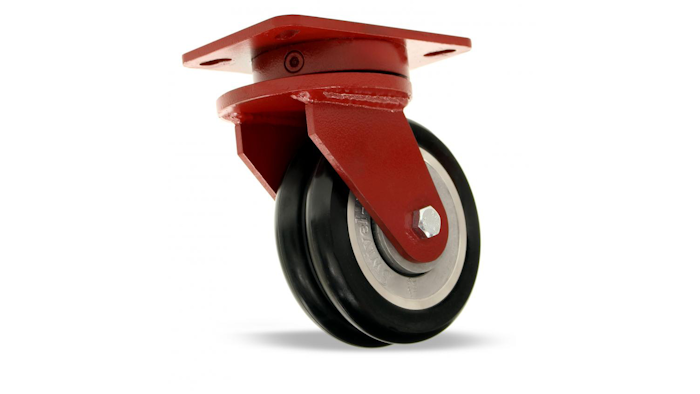

Mnet 173320 Hamilton Caster Ergo X2

HAMILTON, OH — Hamilton Caster announces its new Ergo-X2 Caster Series, designed to reduce the force needed to push or pull carts. The patented new swivel caster design features two precision machined offsetting ball races in a compact assembly to minimize one of the final unresolved issues with swivel casters: lock up.

Lock up in this context occurs when the cart is brought to rest and at least two casters rotate to positions in which two or more wheels become substantially misaligned. A typical swivel assembly in a caster has only one pivot point. The Ergo-X2 Caster essentially provides a second pivot point that reduces the startup force to get the cart moving when lock up is present.

The benefits of the Ergo-X2 casters are also in direct alignment workplace safety and creating environments that reduce musculoskeletal injury. According to Liberty Mutual the largest worker’s compensation insurance provider in the U.S., overexertion, lifting, pushing, pulling, holding, carrying, or throwing, costs employers $15.08 billion every year.

It's now common for safety managers to demand that push/pull forces not exceed more than 45 pounds. The Ergo-X2, paired with one of Hamilton’s ergonomic poly treads, is the path forward. Material handling operators that must adhere to these strict ergonomic standards will find the new Ergo X2 Swivel Technology especially useful.

The new Ergonomic Series features the popular 4-1/2’ x 6-1/2” mounting plate and is offered in 4”, 5”, 6”, & 8” diameter wheels. The caster series are paired with specific Hamilton wheels that provide the lowest startup & maintain forces to optimize the caster’s ergonomic performance.

Mnet 84591 Hamilton Caster Ergo X2
