NEWS RELEASE FROM: THE GRIEVE CORPORATION
AGENCY CONTACT: Tim Daro, Bernard & Company, (847) 934-4500
500oF ELECTRIC
BELT CONVEYOR OVEN
FROM GRIEVE
No. 853 is a 500OF electrically-heated belt conveyor oven from Grieve, currently used for curing coating and heat shrinking plastics at a customer’s facility.
Workspace dimensions of this oven measure 30” wide x 96” deep x 24” high. A 2’ long open belt loading zone, 8’ long insulated heat zone with recirculated airflow and 2 ½’ long open belt unloading zone constitute the full heat processing system. 48KW installed in Nichrome wire heating elements provide the heat, while a 4200 CFM, 3-HP recirculating blower furnishes vertical downward airflow to the load.
This Grieve oven features 4” insulated walls, a Type 304, 2B finish stainless steel interior, stainless steel exterior with #4 brush finish, as well as a 24” wide, 1” x1” Type 304 stainless steel flat wire conveyor belt with ¼-HP motor drive, variable speed from 0.9 to 17.6 ipm. A side door allows access to the unit’s workspace.
Safety and control equipment on-board No. 853 include PVC electrical conduit, a remote control panel, 325 CFM stainless steel powered forced exhauster, six-point thermocouple jack panel through the oven wall, digital indicating temperature controller, manual reset excess temperature controller with separate contactors, and recirculating blower airflow safety switch.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Il 60073-2898. Phone:(847)546-8225. Fax: (847)546-9210. Web: www.grievecorp.com. Attention: Frank Calabrese.
-0-
Photo enclosed

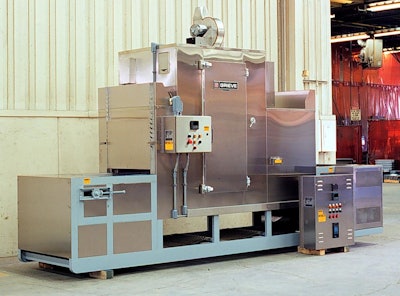

(Caption for b/w and color photos)
No. 853
500°F Electrically-Heated, Belt Conveyor Oven
THE GRIEVE CORPORATION
