Corrosion Resistance on a Roll

Rubber disc return rollers from Elite Roller Manufacturing feature four tapered roller bearings (two in each hub) for unrivaled smooth, true operation and a service life that is up to three times longer than traditional two-bearing roller designs.

title
title

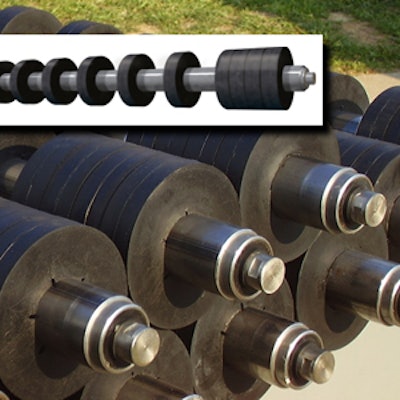

Rubber disc return rollersRubber disc return rollers from Elite Roller Manufacturing feature four tapered roller bearings (two in each hub) for unrivaled smooth, true operation and a service life that is up to three times longer than traditional two-bearing roller designs. The company says that the rollers are characterized by:

  • In addition to significantly longer service life, the patented “quad bearing” design withstands more severe applications than traditional rollers.
  • Made with universal shafts, and 5-, 6- or 7-inch diameters, they fit any manufacturers’ brackets.
  • They are ideal for abrasive and corrosive environments, including use in mining, aggregate materials handling, power plants and more.
  • In addition to longevity, the patented Elite design allows the re-use of the axle assembly.
  • Because there is no welding on the idler assembly, any damaged parts can be replaced in just minutes.
  • Rollers can be refurbished at a fraction of the price of new ones, with 90 percent of the materials re-used.
  • They are available with standard shell thickness of 3/16 and ¼ inch.
  • Standard rollers include ¾-inch bearings, while heavy duty rollers are equipped with 1 ¼-inch  bearings.
  • They are available for belt widths of 18to 96 inches.
  • An inner support tubes ensures that hubs are independent of each other for smoother operation and longer life.
  • Stainless steel shafts are also available for corrosive applications.
