Silicon Carbide Diodes

Offer faster switching, higher efficiency.

Screen Shot 2021 09 16 At 11 09 13 Am
Littelfuse

Littelfuse announces the expansion of its silicon carbide diodes portfolio to include the 1700 V-class.

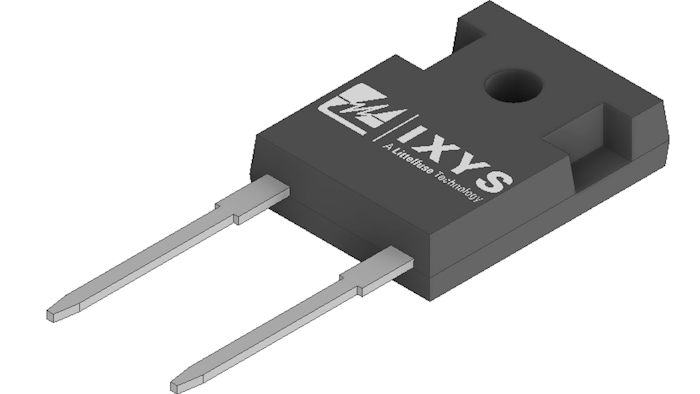

The LSIC2SD170Bxx Series SiC Schottky Diodes are available in the TO-247-2L package with a choice of current ratings (10A, 25A, or 50A). They offer power electronics system designers a variety of performance advantages, including close-to-zero reverse recovery current, high surge capability, and a maximum operating junction temperature of 175°C.

SiC Schottky barrier diodes are ideal in a wide range of AC/DC and DC/DC power converters for industry, energy generation, and energy distribution/storage, including:

  • Industrial switch-mode power supplies

  • Uninterruptable power supplies

  • Battery chargers

  • Solar inverters

  • Industrial motor drives, and

  • High speed rectifiers

The LSIC2SD170Bxx SiC Schottky diodes offer a positive temperature coefficient of the forward voltage for safe operation and ease of paralleling, temperature-independent switching, reduced switching losses compared to Si bipolar diodes, and optimized overall system efficiency

For more, visit the LSIC2SD170Bxx SiC Schottky Diodes product page.
