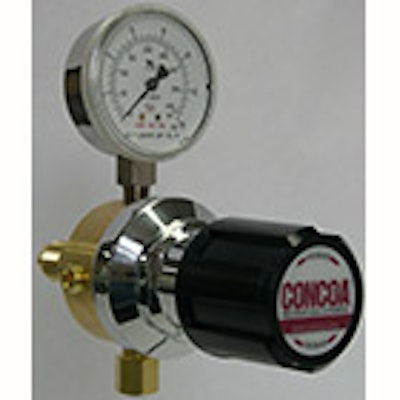

CONCOA has introduced a new industrial pipeline regulator designed to exceed heavy heating, cutting pressure and flow
requirements. The 9940 series industrial regulator incorporates a new high-flow encapsulated soft seat, which has a low cracking pressure. This coupled with a large orifice size enhances the safety and productivity of low-pressure fuel gases. With adequate supply, this enables use of larger heating heads to maximize BTU output. The regulator is configured with a 65 mm neoprene diaphragm to provide stable pressure control. The encapsulated seat provides a high cycle life due to the integral positive pin stop that prevents the seat from being deformed, includes a 55-micron sintered filter to prevent debris from damaging the seat and combines ten to twelve seat components into one assembly, which extends the service life of the regulator. The regulator offers flow capacity with a Cv of .45 and outlet pressure ranges of 0 -15, 40, and 200-psi. Compliant with CGA pipeline inlet and outlet connections, the 9940 series offers enhanced visibility for fuel, oxygen and inert gases.
