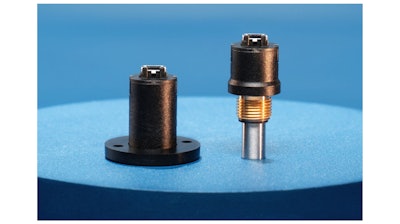

US Digital (VANCOUVER, WA) introduced two new miniature absolute encoders: the MAE4 and the MA4. The MAE4 is a kit-style encoder designed for direct shaft mounting, while the MA4 is a shafted version.
The MAE4 and MA4 provide 12-bit absolute position feedback for motion control applications, with analog or PWM output options.
Features & Benefits:
-
MAE4 features a push-on magnetic hub for fast installation
-
Supports seven shaft diameters: 3 mm, 4 mm, 5 mm, 6 mm, 0.125", 0.188", 0.250"
-
Supports two shaft lengths: 0.220”, 0.500”
-
Mounts to bolt circles of 0.750", 1.280", and 1.812"
-
Compact design allows integration in space-limited applications
-
MA4 is constructed from glass-filled polymer for increased durability
-
MA4 shaft torque provides tactile feedback similar to a potentiometer
-
Both encoders offer enhanced vibration and shock resistance
-
Equipped with a latching connector for secure installation
-
Suitable for industrial, medical, and motion control applications
Suitable for use in industrial and medical environments where robust construction and sterilization compatibility are required.
For more information, visit the US Digital webpage.
