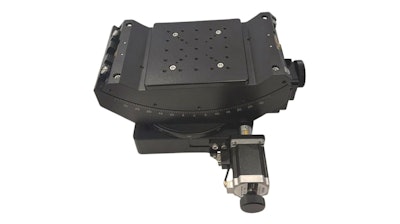

Recently, Optimal Engineering Systems, Inc. (VAN NUYS, CA) introduced the YP200-30 Series of Dual-axis Yaw-Pitch Stages, designed for applications requiring precision in angular positioning and motion control.
The YP200-30 Series provides a platform for precise measurement of curves and angles through the integration of high-precision rotary and goniometer stages.
Features & Benefits:
-
Includes a high-precision rotary stage (Yaw-axis) with clockwise and counterclockwise rotation
-
Equipped with a high-precision goniometer stage with ±30 degrees of travel
-
Pitch axis table measures 160 mm x 160 mm with a precision pattern of threaded holes
-
Accessible mounting holes for integration into new and existing applications
-
Yaw axis includes a HOME switch; pitch axis includes two end-of-travel limit switches
-
Available in several configurations:
-
YP200-30-01: Two-phase stepper motors with manual adjustment knobs
-
YP200-30-02: Three-phase brushless servo motors with quadrature incremental optical encoders
-
YP200-30-03: DC brushed servo motors with quadrature incremental optical encoders
-
YP200-30-04: Quadrature incremental optical encoders for position verification
-
-
Servo motor-driven versions offer improved repeatability, positional accuracy, and travel speed
-
Repeatability (with 10 micro-steps-per-step driver): ±0.01 degrees
-
Positional accuracy: 0.05 degrees
-
Resolution: 0.001 degrees (3.6 arcsec)
-
Constructed from black anodized aluminum
-
Load capacity: 25.0 kg
-
Rotation center height: 136 mm
Suitable for precision measurement and positioning applications requiring high accuracy and integration flexibility.
