Pallet Systems

The pallet systems provide users with greater customization capabilities to benefit assembly and other similar processes. Pallet system components include merge and divert kits, a lift and locate station and pallet stops.

title
title

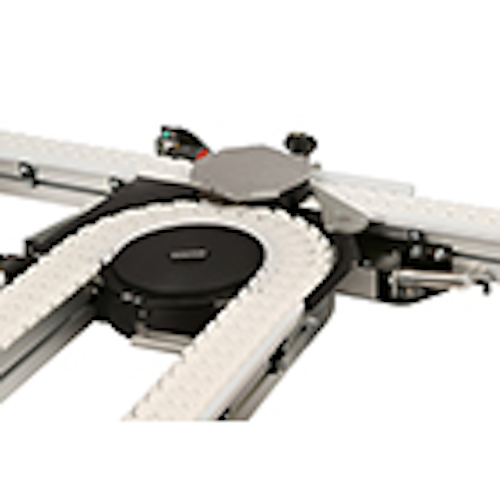

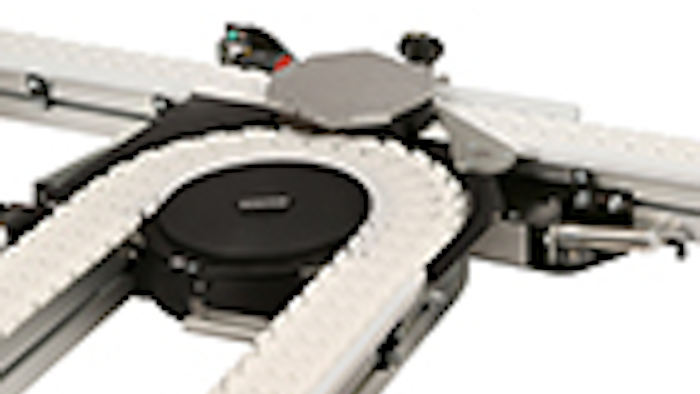

Dorner Mfg. has introduced new pallet system co mponents for use on its 2200 SMartFlex flexible chain conveyor platform that provides accurate positioning and routing of parts for assembly, robotic and inspection applications. The components, sold as completed assemblies or as kits, allows uers to implement easy design changes to their conveyor systems, and offers versatile layout flexibility. The pallet systems provide users with greater customization capabilities to benefit assembly and other similar processes. Pallet system components include merge and divert kits, a lift and locate station and pallet stops.

Merge and Diverts

  • Multiple kit styles include: divert, merge, and merge and divert
  • Multiple configurations including 45°, 90° and parallel
  • Require pallet or puck stops to be used for product traffic control
  • Designed for use with pucks and pallets with the Pin Tracking System
  • Requires that the conveyor is equipped with guiding. Cutting and fitting of the guiding is required

Lift and Locate Station

  • 105 mm conveyors
  • + 0.004” accuracy
  • 200 pounds holding force
  • Includes one pallet stop (cushioned and non-cushioned)
  • Includes sensor mounts
  • Sensors and pneumatic valves optional
  • Maximum usable width = pallet width

Pallet Stops

  • Pneumatic stop
  •  Cushioned and non-cushioned models
  • Capable of back-to-back pacing
  • Up to 100 pounds total per pallet stop at 100 feet-per-minute
  • Lower speed increases load capacity

Dorner Conveyors www.dornerconveyors.com
