Coding Unit for Bottle Serialization

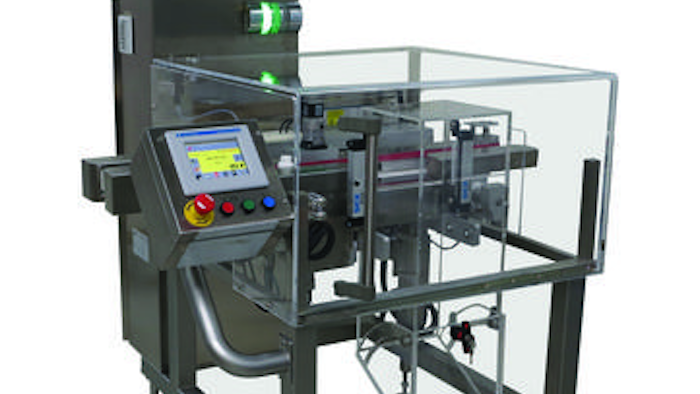

The ACE-BT300 Coding & Verification Unit serializes bottles through its integrated system. The machine offers single-point adjustment for complete format changeovers. The multi-camera system helps verify 2D data matrices printed on each bottle.

The ACE-BT300 Coding & Verification Unit is an integrated system for bottle serialization. The unit provides track & trace capabilities as granular as unit-level and can handle round, square and rectangular bottles from 22-120mm in diameter at a maximum speed of 300 per minute.

Bottle coding can be performed either bottom-up or down.  Positive bottle indexing and transportation has serve-driven side belts provide accurate speed management and position control throughout the process. The machine offers single-point adjustment for complete format changeovers, and bottle rejection is performed via linear motor-driven shaft.

Among the product's technical advancements is the incorporation of a multi-camera system employed to verify 2D Data matrices printed on individual bottles.  Laser printing also is available.  Remarkably, the ACE-BT300 only occupies one meter of floor space.

Other features of the product include:

•      Stainless steel machine frame and electrical cabinet

•      No pneumatic components

•      Reject verification

•      Unit can be supplied with Rockwell/Allen Bradley components

 MG America
