Tmax Link OEM UL 891 Switchboard Program

ABB’s Tmax Link OEM UL 891 Switchboard Program enables original equipment manufacturers (OEMs) to assemble a UL 891-compliant electrical distribution switchboard by properly fabricating parts to mount ABB Tmax molded case circuit breakers (MCCBs).

title
title

NEW BERLIN, Wisc. — ABB’s Tmax Link OEM UL 891 Switchboard Program enables original equipment manufacturers (OEMs) to assemble a UL 891-compliant electrical distribution switchboard by properly fabricating parts to mount ABB Tmax molded case circuit breakers (MCCBs).

The program is designed for dead-front switchboards rated at 600 volts or less and circuits having available rms symmetrical short-circuit currents no greater than 200 kA. Typical applications for these switchboards are electrical light and power circuits.

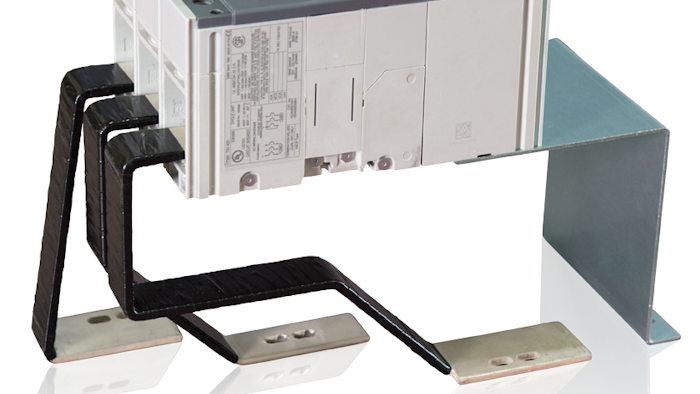

“The Tmax Link OEM UL 891 Switchboard Program is designed for OEMs to fabricate bus, chassis, enclosures and breaker mounting straps for the proper mounting of ABB Tmax MCCBs into dead-front switchboards that qualify for a UL® label,” said Andrea Quarteroni, business unit product manager at ABB’s Low Voltage Products division. “It is especially easy to fabricate the mounting straps, as there are no casting components.”

The Tmax Link OEM UL 891 Switchboard Program provides an extension of ABB’s UL certification under which manufacturers may fabricate basic components using their own branding. The program includes extension procedures that facilitate the formal process for UL 891 compliance of chassis and enclosures. The extension package also includes 2-D and 3-D drawings to aid design and engineering.

The Tmax Link distribution switchboard design incorporates features that meet application requirements for high short-circuit systems, while remaining flexible, safe and convenient.

Other benefits of the Tmax Link OEM UL 891 Switchboard Program include:

    • Coverage of 1 1/4 - and 1 3/8-inch hole spacing on the vertical bus
    • Up to 1,200 A frame breaker in 32-inch width section
    • No limit on use of 100 percent-rated circuit breakers

In addition to drawings and compliance procedures, the Tmax Link OEM UL 891 Switchboard Program extension package includes assembly instructions, with torque values, and a bill of materials. Optional breaker mounting kits are also available.
