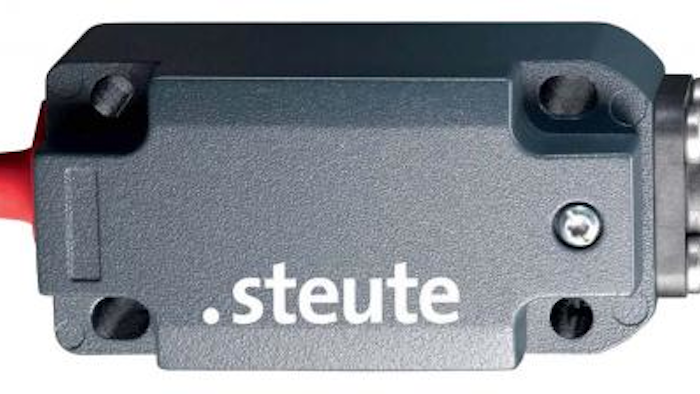

NEW Wireless, Batteryless Limit Switches

Steute Industrial Controls offers a comprehensive line of Wireless, Batteryless Limit Switches. These Wireless Limit Switches feature an internal electrodynamic energy generator.  No battery required.  Displacement of the actuator generates power to send a uniquely coded signal to one or more compatible, easily-programmed Receivers.  If the limit switch does not receive the confirmation signal within 15ms, it transmits a second signal.  The Receiver accepts up to 10 discrete signals per channel.
Steute Limit Switches Features:
•Available for operation at 915 MHz (USA/Canada/Australia) or 868 MHz (Europe)
•Maximum transmission range:  40 m indoors, 450 m outdoors
•Bidirectional communications with Receiver confirming receipt of signal
•Limit switch signal configurable at Receiver (e.g.  NO, NC, other)
•Ingress protection rating:  IP67
•Mechanical life expectancy:  > 1 million actuations
•Operating temperature range:  -20°C to + 65°C
•Certifications:  FCC, IC (for SW915 MHz models), EC (for 868 MHz models)   Options:
•Variety of actuator styles (e.g. roller plunger, roller lever, rocker lever, spring rod, others)
•Transmission range extenders
For additional information and specifications go to the Steute Wireless website: http://www.steute.com/en/wireless/products/wireless-position-switches.html   STEUTE Industrial Controls, Inc.
 901 Ethan Allen Highway, Suite 102
 Ridgefield, CT 06877
 USA   Telephone: (203) 244-6304
Website: www.SteuteWireless.com
 E-Mail: [email protected]
