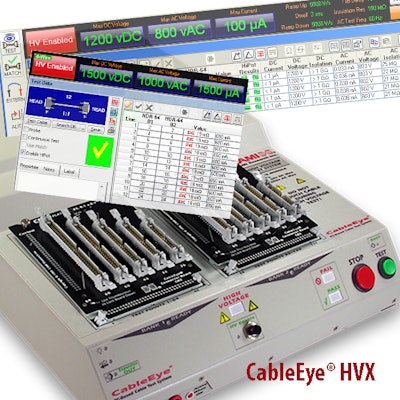

CableEye® HVX HiPot Cable Tester System: Base Unit Item 829

For diagnostic and Pass/Fail Testing — Permits expanded testing for insulation resistance and dielectric breakdown. After checking for opens, shorts, miswires, and resistance limits, the HVX hipot module will apply a user-selectable voltage from 10v to 1500v DC, or 10v to 1000v RMS AC, to each connection group in the cable. Ramp Up, Ramp Down, Dwell Time (same as Test Time), Trip Current, and Trip Delay (same as Soak Time) may be programmed for your specific requirements. Current leakage detected during the high voltage test phase provides a measure of insulation resistance up to 1 GΩ, and any leakage current exceeding a preset limit reveals the presence of moisture, flux, or other contamination on exposed contacts.
