The FX-HM Linear Position Transducer

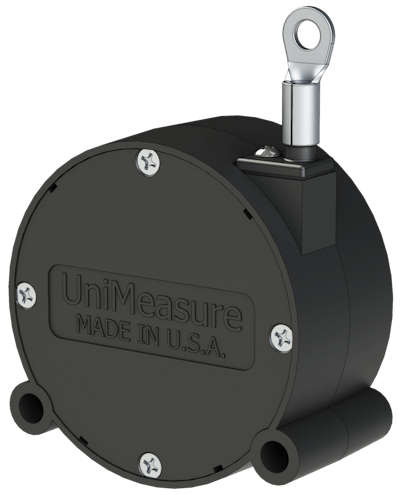

The FX-HM linear position transducer provides up to 15 inches (380mm) of measurement range.

title
title

UniMeasure (Corvallis, OR) presents the model FX-HM linear position transducer.

The FX-HM linear position transducer provides up to 15 inches (380mm) of measurement range. It has a non-contacting internal hall effect device which allows use in dithering or vibration environments that can cause rapid degradation of conventional contacting sensors. The hall effect device insures longevity in excess of 10 million full stroke cycles.

Important features include:

  • A small footprint—0.75-inch wide x Ø1.50.
  • An internal non-contacting hall effect sensor that provides significantly increased life.
  • 9 measurement ranges from 0 to 2 inches to 0 to 15 inches.
  • A wide excitation voltage range of 4.9 VDC to 30 VDC.
  • A nominal 0 to 10 VDC analog.
  • A dynamic response of 25 Hz over a 1.5-inch measurement range.
  • A simple 2-point mount.

The compact size, standard output voltage and wide excitation voltage range make the FX-HM ideally suited for automotive test applications such as monitoring throttle position, pedal position, and suspension travel.

For more information, visit www.unimeasure.com.
