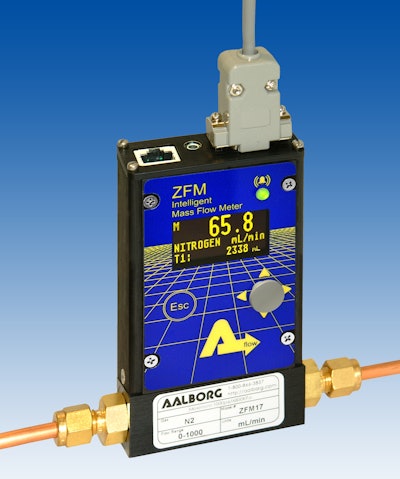

ZFM Intelligent Mass Flow Meters

According to Aalborg Instruments, the ZFM Mass Flow Meters combine meter intelligence, user convenience, and outstanding flow performance.

title
title

According to Aalborg Instruments, the ZFM Mass Flow Meters combine meter intelligence, user convenience, and outstanding flow performance.

They are designed for multi-gas/multi-range functionality up to 8 bar (currently 6 gases) and standard accuracy of ± (0.5% RD + 0.2% FS) based on actual calibration. By connecting the instrument to the RS232/RS485 port of a PC or lap-top and running free “ZFM Configuration Utility” software, the user can select different gas types and flow ranges within a few minutes without removing the instrument from the installation.

ZFM Design Features:

Extensive self-diagnostics with status LED or OLED (optional) indication
Automatic sensor zero offset adjustment (digital interface or local push button)
Digital interface (RS-232 or RS-485) test/configuration port (optional Modbus RTU with isolated RS-485 transceiver)
Two programmable Totalizers
Full scale covered flow ranges from 3.5 sml/min to 10 sl/min in seven models
Selectable analog 0-5 Vdc, 0-10 Vdc, or 4-20mA outputs
Universal 14-24 Vdc power supply input
ZFM User Features:


For more information, please visit www.aalborg.com
