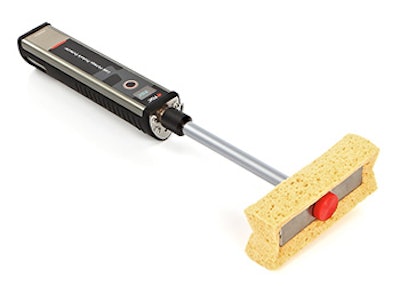

The TQC Low Voltage Pinhole detector enables you to inspect various coatings on conductive substrates for small defects such as holidays and pinholes using the 'wet sponge technique.'
Standards: ISO 8289-A, ISO 14654:1999, BS 7793-2:1996, ASTM D 5162-A, JIS K 6766:2008, TM0384-2002
Features:
• Color display with battery indicator & menu based interface
• Visual, audible, headphones and/ or display, vibration feedback*
• Return cable connectivity detection*
• Automated self-diagnostics
• Available in two models: Basic (Model LD8100) & Advanced (Model LD8105)
• Intuitive single button controls
• Smart power saving feature (screen dimming, standby, auto power-off)
* Depending on model
Technical Specs:
• Voltages (DC): Model LD8100: 9 V and 90 V; Model LD8105: 9 V, 24 V, 67.5 V, 90 V
• Measuring Range: Up to maximum 500 µm (20 mils) coating thickness
• Voltage Accuracy: ±2 % at 9 V, 24 V and 67.5 and 90 V
• Sensitivity: 100 kΩ for all voltages
• Operating Relative Humidity: 0-85 % Rh
• Display: Graphic color display
• Factory Calibration: Inclusive using traceable standards
• Operation: Single button. Microprocessor menu controlled
• Battery Lifetime (Continuous Use): Up to 130 hour
For more information, please visit gardco.com
