GB Gap Bed Hydraulic Press

The press accepts a wide range of standard and optional accessories for forming, punching, shearing, and notching. It can also be fitted with special tooling to allow shearing or forming for special jobs.

title
title

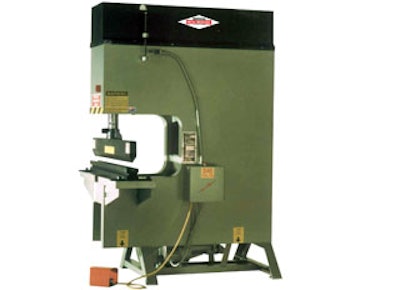

[[{"fid":"160481","view_mode":"media_original","type":"media","attributes":{"height":232,"width":320,"style":"float: right;","alt":"GB Gap Bed Hydraulic Press","title":"GB Gap Bed Hydraulic Press","class":"media-element file-media-original"}}]]The Kalamazoo Metal Muncher (Plainwell, MI) Series GB gap bed hydraulic press is a solid, dependable, and extremely versatile machine designed for low volume production work and job shop applications, says the company. The press accepts a wide range of standard and optional accessories for forming, punching, shearing, and notching. It can also be fitted with special tooling to allow shearing or forming for special jobs. The Series GB gap bed press is available in 40-ton through 135-ton standard models. The 40-ton machine has a 7” x 9” throat and the 70-ton, 100-ton, and 135-ton machines come standard with a 9” x 14” or an 18” x 18” throat. Optional accessories include a heavy duty gauging table, press production table, adjustable work support roller, structural die block, and a special brake die holder.

For complete information on the Kalamazoo Metal Muncher Series GB press as well as other equipment, accessories, and complete specifications, go to www.kalamazoometalmuncher.com.
