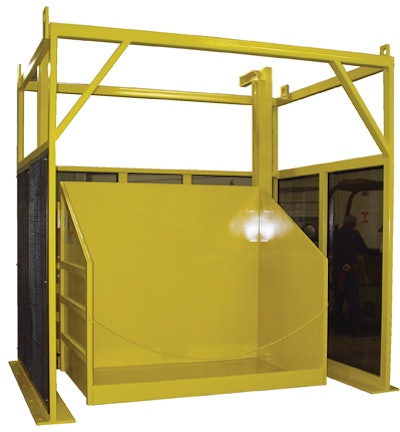

HOPKINS, MI – SP Industries offers the EHD Bin Dumper – an effective solution for industries/businesses that have varying operation levels or need more “fall” for their loads. Available in 135° light capacity and 150°heavy capacity sizes, the EHD Bin Dumper can easily move loads vertically in excess of 30 feet. Each bin dumper has a structural steel frame for durability and is expertly designed to insure stability under extreme conditions. EHD Bin Dumpers can be customized for a variety of containers, carts, boxes, baskets, totes, small barrels and drums.
SP Industries’ EHD Bin Dumpers are used extensively in the waste handling, recycling, industrial processing and food processing industries. Machines can empty material directly from a container into production, recycling or waste handling equipment. Reliable, safe, and easy to use, these machines add value and reduce labor along with other cost savings. All of SP Industries equipment meet or exceed ANSI and OSHA specifications for safety.
Key specifications for the EHD Bin Dumper:
• Maximum Dump Height: 30+’
• Minimum Dump Height: 7’
• Dump Angle: 135° to 155°
• No. Cylinders: 1-2
• Maximum Capacity: 4,000 lbs
• Motor Sizes: 5 HP to 10 HP
• Pump Sizes: 3 GPM to 6 GPM
• Cycle times (sec.): 30 to 285 (vary based on height)
