New CE800 Cation Analyzer Measures Conductivity Accurately and Reliably

Helps Protect Boilers and Steam-Driven Turbine Systems From Corrosion in Electric Power Generation Plants Engineers responsible for steam turbine electric power generation systems will find the new CE800 Cation Analyzer from Electro-Chemical Devices (ECD) provides them with a reliable solution to the measurement of conductivity in water, which helps them protect boilers and steam turbines f...

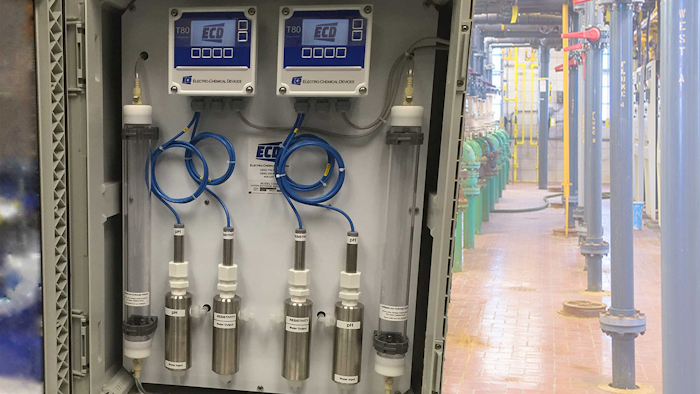

Mnet 176543 Ecd Ce800 Cation Analyzer High Res

Helps Protect Boilers and Steam-Driven Turbine Systems From
Corrosion in Electric Power Generation Plants

Engineers responsible for steam turbine electric power generation systems will find the new CE800 Cation Analyzer from Electro-Chemical Devices (ECD) provides them with a reliable solution to the measurement of conductivity in water, which helps them protect boilers and steam turbines from corrosion that can lead to unplanned maintenance, service interruptions or even require costly premature equipment replacement.

ECD’s advanced CE800 Analyzer Series is a family of reliable on-line cation conductivity analyzers that have been designed with ECD’s intelligent S80 Sensor and universal T80 Transmitter. The precision S80 Sensor digitally communicates with the T80 Transmitter, automatically configuring the transmitter’s menus and display screens to the chosen parameter, including conductivity, resistivity, pH, dissolved oxygen, ORP and specific ions.

Cation conductivity is also known as “acid conductivity” and “conductivity after cation exchange”. It is the measurement of the electrolytic conductivity of a liquid sample (water) after that sample has passed through the CE800 Analyzer’s ion exchange cation resin columns. The CE800 Analyzer’s S80 sensor is available in two conductivity measurement ranges: (1) a low range sensor for measurements from 0.05 to 50µS and (2) a high range sensor for measurements from 50 to 50mS.

When the CE800 Analyzer discovers conductivity levels above the normal pre-set range in samples of feed water, make-up water or steam, it reports the data to the plant’s process control system. Technicians are alerted to the above normal level of conductivity in the water, which likely indicates the presence of harmful contaminants. These contaminants over a relatively short time can lead to corrosion that impacts the efficiency of the boilers and turbines.

The plug-n-play smart CE800 Analyzers are easy to start up and use, requiring a single technician less than 15 minutes to install. The rugged weatherproof IP65 enclosure with wall mounting hardware is standard and ready to go right out of the box. No special tools or are needed. All the technician needs to do is connect the sample lines and then power up the factory pre-calibrated conductivity analyzer.

This CE800 Analyzer features the versatile capabilities of the ECD T80 Transmitters and S80 Sensors for conductivity and pH if so desired. Outputs include 4 to 20 mA, relays and MODBUS communication. The HART communication protocol also is available as an option.

Technicians will appreciate the CE800 Analyzer’s easy-to-read 128-x-64 pixel (2.75-x-1.5-inch) LCD display. The display is available in either black on grey with no backlight or blue on a white background with the LED backlight. The simple menu structure is highly intuitive, easy to navigate and configure
