Stafford Flanged Shaft Collars

Flanged shaft mounting collars that combine secure clamping with specially machined features such as attachment points, cam surfaces, O-ring grooves, slots and more are available from Stafford Manufacturing Corp.

Mnet 174619 15595

WILMINGTON, MA — Flanged shaft mounting collars that combine secure clamping with specially machined features such as attachment points, cam surfaces, O-ring grooves, slots, and more are available from Stafford Manufacturing Corp.

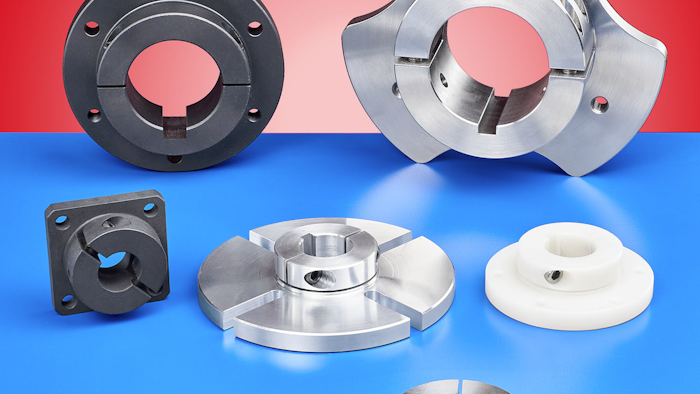

Stafford Flanged Shaft Collars are one-piece shaft mount solutions that can be manufactured from a variety of materials with custom configured flanges to meet customer application requirements. Incorporating the Accu-Flange mounting feature to retain flatness and perpendicularity to < 0.001 TIR, they let users attach gears, pulleys, and sprockets without welding.

Designed with a smooth bore and keyway, Stafford Flanged Shaft Collars have a split design and relief groove clamping feature that will not mar shafts and the flanges have standard or custom hole patterns or slots. Flanges to 10-inch O.D. and bores to 6-inch I.D. are offered and materials include aluminum, black-oxide steel, stainless steel, and plastics.

Stafford Flanged Shaft Collars are priced according to material, size, configuration, and quantity. Pricing is available upon request.
