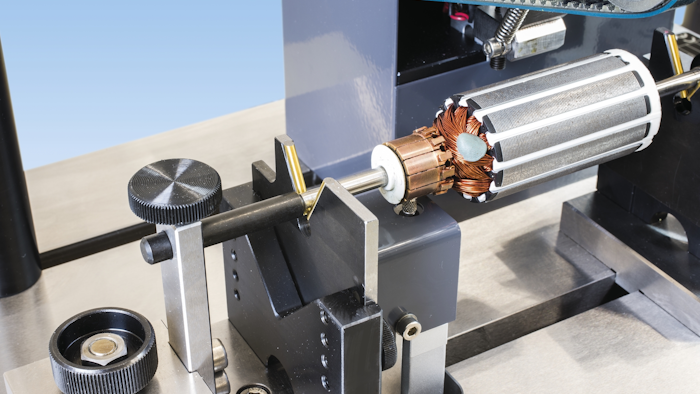

Mnet 174193 Mar Solutions Rpm Commutator Closeup

FOR IMMEDIATE RELEASE

Contact:
Mahr Federal Inc.
Robin Palermo
1144 Eddy Street
Providence, RI 02905 USA
401-784-3187

Media Contact:
THOMAS RANKIN ASSOCIATES
Tom Rankin, APR
401-527-6245

MarSolutions RPM Gage Provides Dynamic Measurement on Commutator and Other Precision Shafts

-- Measures diameter, roundness, runout and segment analysis on commutator shafts, turbocharger shafts or precision shafts in electric motors

PROVIDENCE, RI – The MarSolutions team at Mahr Federal has developed a customized RPM gage for the dynamic measurement of cylindrical parts such as commutator shafts, turbocharger turbine shafts, and other precision shafts in electric motors. The gage incorporates precision Vees and adjustable end-stops to support the shaft and define its axial position, and a motion belt to rotate the shaft at up to 20 RPM.

The MarSolutions group was recently established to augment custom gage development directly with customers in response to increased demand for custom gaging solutions for dimensional metrology. Operating worldwide from a number of facilities, the MarSolutions Engineered Metrology Team will help customers analyze the gaging requirements of their application, then design and build a customized gaging solution to meet those requirements.

The MarSolutions Commutator Gage can be used in the lab or on the shop floor to measure multiple dimensional parameters, including diameter, roundness, runout, segment gap, and segment height to height and profile. The gage can be dedicated for a specific shaft size or made adjustable by the user to measure shaft lengths from 130 to 300 mm, shaft diameters from 4 to 20 mm, and winding diameters from 25 to 80 mm. A DC motor drives the motion belt from 2 to 20 RPM while the gaging computer collects data for analysis.

The user customizable software allows results to be displayed as bar graphs, polar graphs, or XY graphs with measuring values or mean values. The D1200X software interface optimizes gage use and allows quick, easy creation of customized forms and programs, and provides integrated functions for measuring system analysis, repeatability and reproducibility. SPC functions allow analysis of X/S and X/R, Pareto and histograms, and data can be exported in QDAS, QUASAR, ASCII and EXCEL formats.

As a customized design, the MarSolutions RPM measuring gage can easily be adapted for other part dimensions and/or shaft designs.

Mahr Federal Inc., a member of the Mahr Group, has over 150 years of experience providing dimensional measurement solutions to fit customer application needs. The company manufactures and markets a wide variety of dimensional metrology equipment, from simple and easy-to-use handheld gages to technically advanced measurement systems for form, contour, surface finish and length. Mahr Federal is also well known as a producer of custom-designed gages and a provider of calibration and contract measurement services. Mahr Federal's calibration laboratories are accredited to ISO/IEC 17025:2005 NVLAP Lab Code 200605-0 (see our Scope of Accreditation for accredited calibration processes).
