The new panel mounted PA80 Peracetic Analyzer from Electro-Chemical Devices simplifies process monitoring to ensure disinfection without the need for potentially harmful disinfection byproducts (DPBs).
The ECD PA80 Peracetic Analyzer features multiple PAA measurement ranges: 0-20, 0-200 and 0-2000 ppm. Providing multiple measurement ranges allows plant engineers to select the monitoring range that best fits the requirements of their product batch recipes, their processes and equipment cleaning requirements.
The food and beverage, medical and pharmaceutical industries all rely on PAA as a cleaner and sanitizer of process equipment, medical instruments and for bottle washing. It is also used as a disinfectant in municipal wastewater treatment and industrial cooling towers.

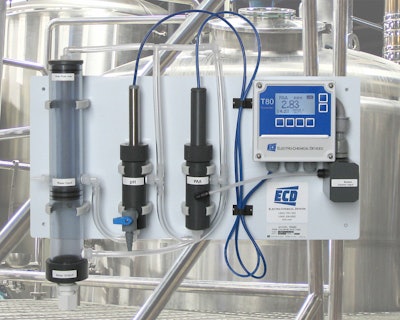

PAA is a highly effective bactericide that decomposes naturally into acetic acid and water and does not form a residual that has to be removed from the treated water. The PA80’s plumb and play design incorporates a constant head flow control device, a pH sensor, a peracetic acid sensor and ECD’s T80 analyzer/ transmitter all mounted on a PVC panel. The minimum flow required for the CFD is 10 gal/hr, and the maximum flow rate is 80 gal/hr with the sample draining at atmospheric pressure.
The PA80 features an optional auto clean configuration, which includes a solenoid actuated spray cleaner that uses either 30 psi process water or air. An easily adjusted timer controls the period and duration of the cleaning cycle. The optional spray cleaner also eliminates fouling to protect batch sensitive products and prevent process line downtime.
Learn more at http://ecdi.com.
