Bulk Bag Weigh Batching System

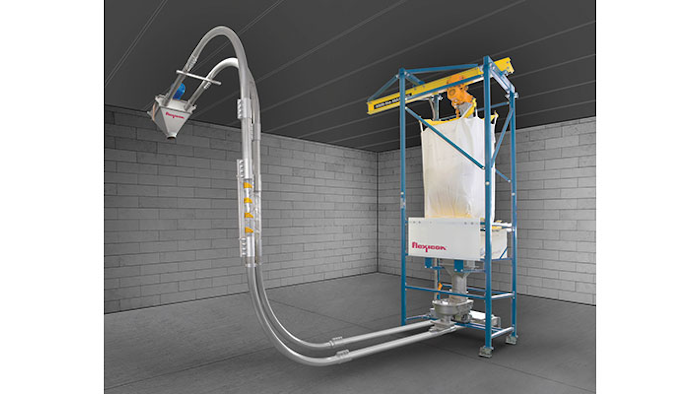

Company's new automated Bulk Bag Weigh Batching System meters ingredients into a FLEXI-DISC Tubular Cable Conveyor that transports batches of a specified weight to downstream processing equipment, dust-free.

Mnet 150407 Flexicon Product Listing Outside
Flexicon CorporationFlexicon Corporation

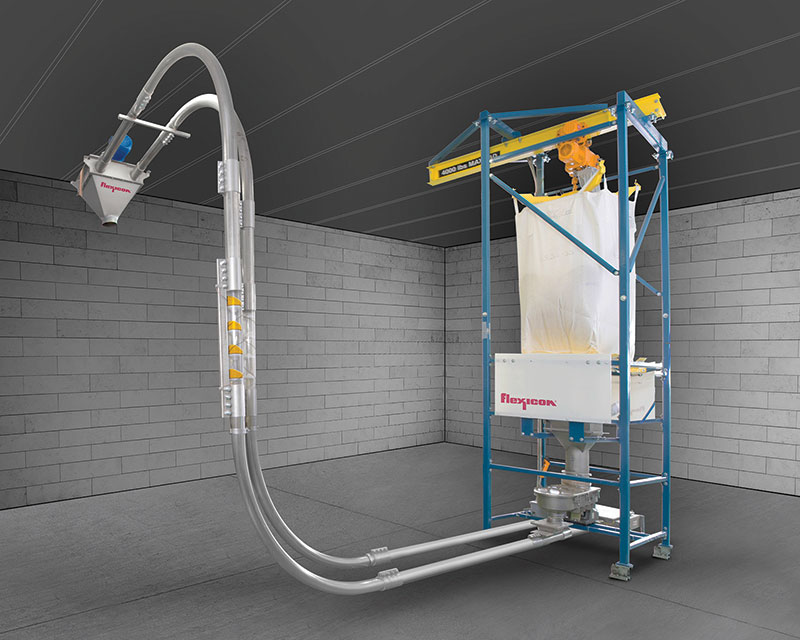

Company's new automated Bulk Bag Weigh Batching System meters ingredients into a FLEXI-DISC Tubular Cable Conveyor that transports batches of a specified weight to downstream processing equipment, dust-free.

The BULK-OUT® BFC Series Bulk Bag Discharger features a cantilevered I-beam with electric hoist and trolley for loading and unloading of bulk bags without the use of a forklift.  FLOW-FLEXER® bag activators raise and lower opposite bottom edges of the bag at timed intervals, promoting continuous and complete discharge of free- and non-free-flowing materials through the bag spout.

The discharger rests on load cells that signal a PLC to stop a vibratory feeder that meters material into the conveyor once a pre-programmed batch weight has been metered out.

Low-friction polymer discs attached to stainless steel or galvanized cable within stainless steel conveyor tubing, gently and smoothly transport friable food and non-food products, and fully evacuate the conveyor of material to achieve accurate batch weights.

The discs and cable are driven by a wheel at one end of the circuit and put under tension by a wheel at the other end. The conveyor tubing can be routed horizontally, vertically, or at any angle, around corners or through small holes in plant walls.  Inspection windows can be added to any straight run of tubing.

The conveyor can accommodate multiple metered inlets for primary ingredients and non-metered inlets for minor ingredients, as well as multiple full-flow outlets and valved outlets for selective distribution of materials.

Flexicon Corporation  www.flexicon.com
