Variable Area Flowmeters

This option enhances the meters' monitoring of continuous process cooling flows such as for cooling water, seal water, cutting oil, cooling jackets, heat exchangers and other cooling equipment...

Mnet 122630 Hart Web

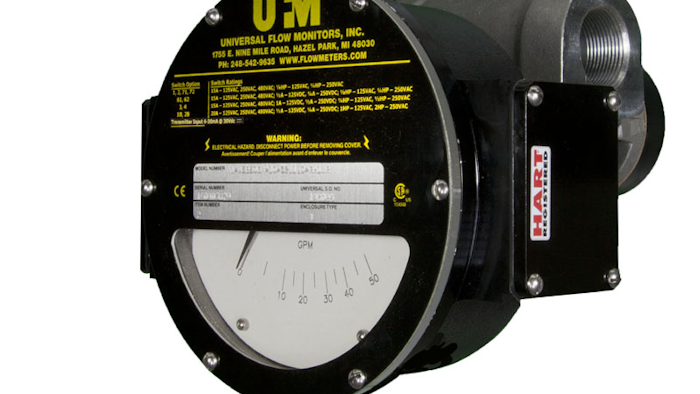

Universal Flow Monitors, Inc. now offers a HART protocol option on all of its variable area and piston style flowmeters. This option enhances the meters' monitoring of continuous process cooling flows such as for cooling water, seal water, cutting oil, cooling jackets, heat exchangers and other cooling equipment. There is an additional option of a mechanical switch to back up the transmitted signal.
With the new HART protocol transmitter, these reliable meters provide rate, total and two adjustable set points. HART is a digital communication signal superimposed on top of the 4–20 mA standard analog signal. It is one of the most popular industrial protocols.
The HART option is offered on all variable area vane and piston style flowmeters. These simple low maintenance meters come in 12 sizes and go up to 2000 PSI pressure for flow ranging up to 500 GPM. They have CSA and CE certifications. They are easy to install, operate and maintain. They mount in-line and in any orientation, with no straight pipe runs required.
The UFM website aids customers in choosing a flowmeter specific to their needs. Product specification choices are available for units of measurement, maximum flow rate, pipe size and pressure.
Universal Flow Monitors, Inc., located in Hazel Park, Michigan, has manufactured flowmeters for a variety of industries for more than 40 years. The company can be reached at (248) 542-9635, by email at ufm@flowmeters.com or through the website at www.flowmeters.com.
