20’ Three Stage Light Mast on 10’ Ski Axle Trailer

The LM-20-3S-10TLR-SKI telescoping three stage steel mast from Larson Electronics is designed to allow operators to quickly deploy lights, security cameras and other equipment to elevations up to ...

title
title

Larson Electronics continues its commitment to providing high grade lighting equipment to specialty markets with the release of a twenty foot three stage mast mounted to a ten foot ski axle trailer.

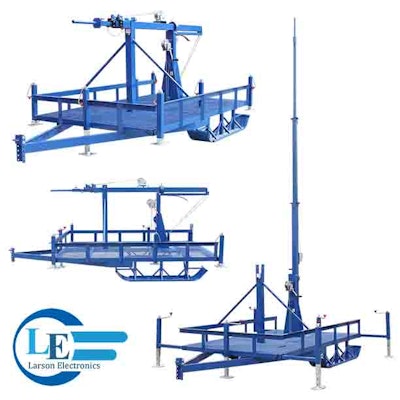

The LM-20-3S-10TLR-SKI telescoping three stage steel mast from Larson Electronics is designed to allow operators to quickly deploy lights, security cameras and other equipment to elevations up to thirty feet. This tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. The entire assembly is mounted on a ten foot single axle trailer with skis, allowing operators to transport the boom from one location to another on ice and snow. The mast and trailer are powder coated with a glossy blue finish for corrosion resistance and aesthetics.

This mast can be extended to 20’ above the trailer floor for maximum area coverage, and collapsed to 9’. This tower is constructed of steel square tubing with a lower section, a middle section, and an upper section measuring in different lengths for each section. It’s elevated using an included 1,000 lb. rated hand winch with 3/16” galvanized steel cable and extended to its full height using a second 1,000 lb. winch. This mast is mounted to a 10’ by 6’, single axle trailer via six ½” anchor bolts. The trailer bed is constructed of expanded metal to help prevent ice buildup on the bed platform, allowing snow and rain to flow through the trailer instead of building up on the deck. The dual ski trailer is equipped with 3,500 pound leaf springs and metal snow skis. The trailer can support and haul an additional 1,000 pounds of equipment. Four 1,000 lb. hand crank leveling jacks are used for leveling and can be extended 2’ out from the side of the trailer for added stability. Three additional 1,000 lb. jacks help prevent the skis and tongue from freezing to glaciers and help break the trailer and skis free after freezing.

Larson Electronics carries an extensive line of LED light towers, portable power distribution systems, explosion proof lights, portable work lights and industrial grade LED area lights. You can view Larson Electronics’ entire line of lighting by visiting them on the web at Larsonelectronics.com. You can also call 1-800-369-6671 to learn more or call 1-214-616-6180 for international inquiries.
