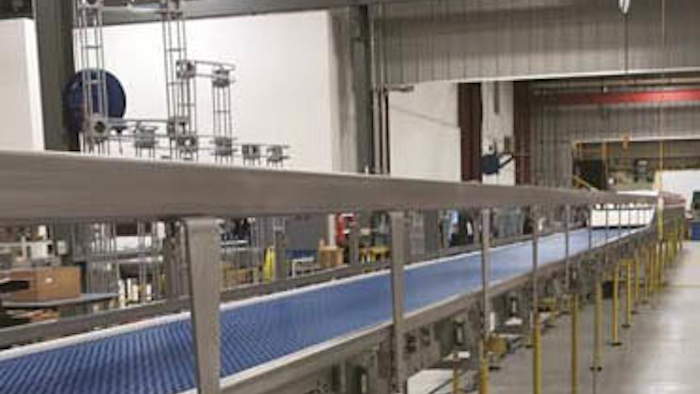

70' Long Accumulation, Decline Noser, Shuttle Conveyor

This stainless steel constructred plastic belt conveyor is designed for accumulating flat or low in height product. When the downstream process pauses, the accumulation system is activated and receives product from the upstream transport conveyor to allow the upstream machines to empty, or to continue their process for a limited time.

title
title

This stainless steel constructred plastic belt conveyor is designed for accumulating flat or low in height product.

When the downstream process pauses, the accumulation system is activated and receives product from the upstream transport conveyor to allow the upstream machines to empty, or to continue their process for a limited time.
The initial decline noser of the upstream conveyor transfers product onto the shuttle accumulation conveyor which extends to absorb the flow of product even though its belt is not running. Once the downstream is again ready to receive product, the shuttle accumulation conveyor retracts and its belt is powered on to discharge product off of the accumulation conveyor, onto the downstream transport conveyor.

The shuttle accumulation design was made for accumulating mass flow or single file product by extending and retracting a secondary accumulation conveyor located between transportation conveyors. By extending and retracting the secondary accumulation conveyor, one effectively expands and contracts the conveying surface dynamically, balancing production flow and/or giving the ability to clear out upstream equipment when downstream equipment experiences outages.

Benefits include: The same unit could combine both dynamic accumulation and clear out modes of operation. Different lengths or multiple levels can be incorporated to increase accumulation values. T

Application could include bakery, confectionary, other food products—either packaged or unpackaged—as well as many other industries.

Learn more at www.multi-conveyor.com.
