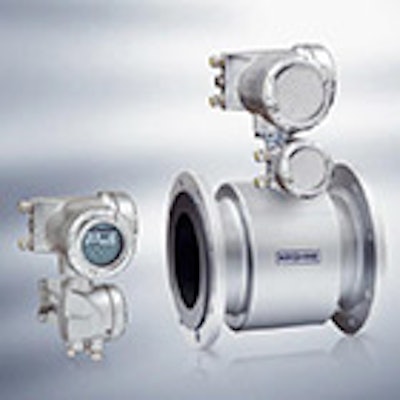

KROHNE introduces the new TIDALFLUX 2300 F, an electromagnetic flowmeter which features an integrated, non-contact
capacitive level measurement for flow measurement in partially filled pipes. In addition to municipal or industrial wastewater transport, the device can also be used for measurement of effluent brine from dredging, mining or sea/well water injection applications. It is designed to provide reliable flow measurement for flow streams that fill between 10% and 100% of the pipe diameter. The accuracy in partially filled pipes is <1% of full scale, while the accuracy in full pipes is <1% of the flow rate. The flowmeter is wet-calibrated at factory in a direct comparison of volumes, so does not require on-site calibration. The electrodes are mounted at a height of 10% from the pipe bottom, ensuring that they are always wetted to avoid corrosion. Available in diameters of 8-64" / DN200-1600, the measuring tube of the meter comes with a polyurethane liner which is resistant to abrasion and chemicals.
KROHNE
