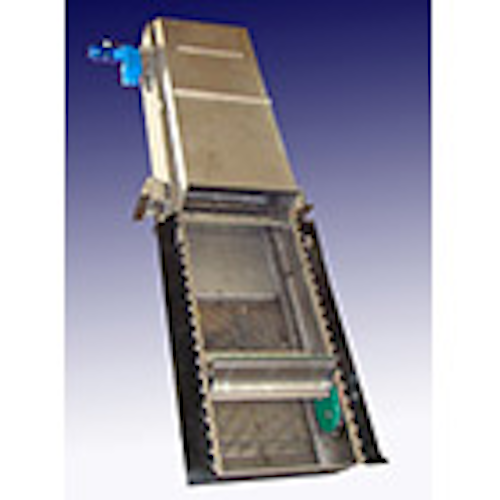

The SCREENMASTER CS provides efficient cleaning of a bar screen rack and removal of solids from channel installations. It employs a front clean/ front return principle, is easy to install in new or existing channels and at a 75-degree inclination, has a very small footprint. The design features a simple, continuous rotary motion. It employs rake heads that penetrate the screen slots as they reach the channel bottom and lift accumulated debris up to a discharge height of up to 38 ft (11.6m) from the channel bottom. The screenings then drop out of a discharge chute where they can be processed by a SPIRALIFT SC screenings conditioner/wash or deposited into a bin or conveyor. It is constructed of stainless steel for resistance to corrosion and long life. It is supplied complete with an S320 Program Controller which activates on a timed basis or when a high level is indicated by a supplied level sensor. The unit is driven by a ¾ HP-1HP motor and gear drive and is custom built for channel width and lift height.
Franklin Miller, Inc., Livingston, NJ, 973-535-9200, https://franklinmiller.com/
