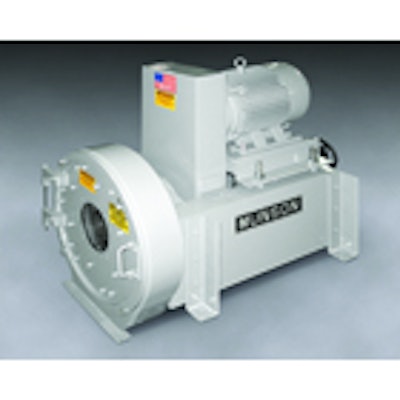

A new Model SK-24-MS Attrition Mill from Munson Machinery reduces friable chemicals and minerals, as well as metal powders, wood flour, fertilizers, insecticides and fibers, producing particles within relatively narrow size ranges from 10- down to 100-mesh.
- 24'' diameter mill is equipped with an outer stationary milling disc
- Inner rotating milling disc adjusts to vary the gap between the discs
- Material enters the gap through the center of the outer disc
- Its ground between the discs as it travels radially by centrifugal force created by the rotating disc, with greater reductions achieved by reducing the gap
- Capacity is generally dependent on the required output size of the reduced material, with coarser products produced at higher rates
- Precise machining and alignment of the discs, together with constant spring pressure, maximize size uniformity of the reduced material
- Static and dynamic balancing of the rotating runner head assembly provides vibration-free operation
- Plate patterns are selected to optimize the reduction of specific types of materials
- Models are available with rotor diameters from 12 to 36'', constructed of carbon steel (shown) and are available in #304 or #316 stainless steel to sanitary or industrial standards
