2 Flow Totalizers in 1

Aalborg® has developed its TIO totalizer to convert analog mass flowmeters and controllers into precise digital units via RS-232 or RS-485 interfaces.

title
title

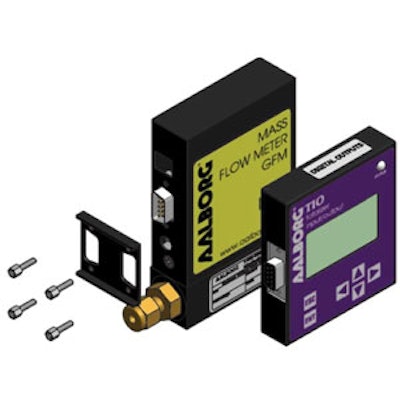

Aalborg TIOAalborg® has developed its TIO totalizer to convert analog mass flowmeters and controllers into precise digital units via RS-232 or RS-485 interfaces. According to the company, the totalizer additionally grants:

  • 2 fully independent programmable totalizers that allow up to 9 digit total readings.
  • Updates that refresh every 100 ms and can be set to activate different events.
  • A multi-drop capacity up to 64 devices.
  • The display of instantaneous, total and accumulated flow rates.
  • A user-friendly menu that simplifies making changes.
  • Password-protected process configuration parameters settings to prevent accidental or unauthorized changes.
  • Backup of the main totalizer's accumulated total every second with EEPROM memory.
  • The flexibility to be used as a monitor for the company's GFM and AFM flowmeters or as a controller with its GFCs and AFCs, as well as with any third-party devices that have 0? to 5-VDC/4? to 20-mA inputs and outputs.
  • No need for a host PC presence for local or programmable set-point controls.
  • A compact size designed for wall, panel, field or unit-mount applications.
  • The convenience of Aalborg® configuring the input and output signals to your specific application.
  • Free configuration and monitoring utility software.
